NEW FROM ICON ALLOYS | AVAILABLE NOW!

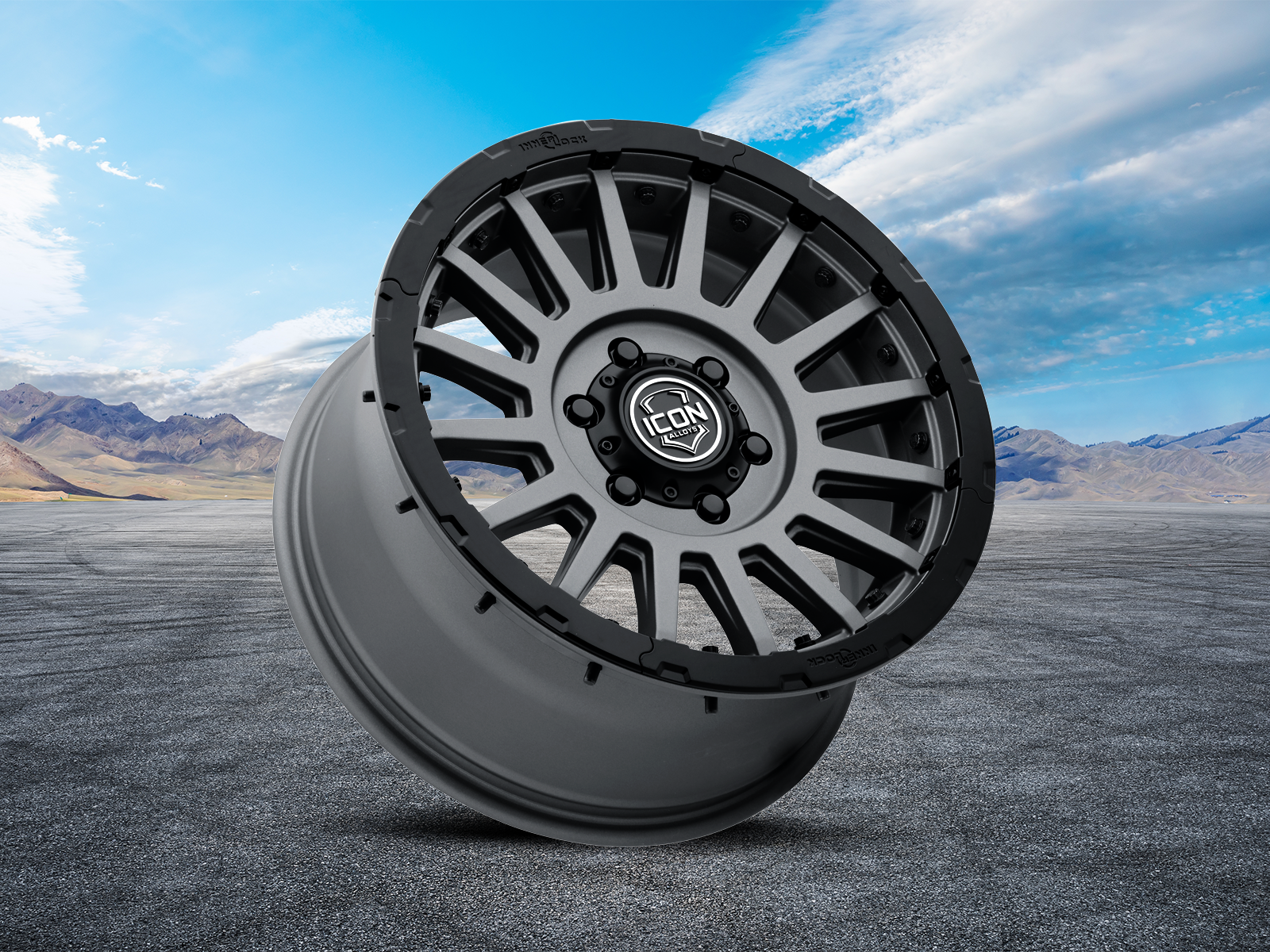

18-INCH RECON PRO with 40MM OFFSET
RECON PRO featuring InnerLock™
The ultimate on- and off-road performance wheel is now available for applications that require a high offset (+40mm) and 18-inch wheel in order to maximize tire size and choice for select vehicle configurations. Recon PRO features InnerLock™ D.O.T.-compliant bead-retention technology, replaceable HALO Wheel Armor and aggressive 16-spoke styling. Available wheel finishes are Charcoal and Satin Black, and come with preinstalled HALO Wheel Armor in Satin Black.
 |
 |

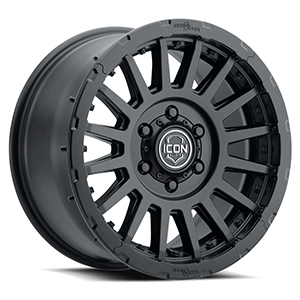

RECON PRO
18X9 | 6 on 5.5" | +40mm OS | 6.6" BS
23618909066SB ICON ALLOYS RECON PRO SAT BLK - 18 X 9 / 6 X 5.5 / 40MM / 6.6" BS
23618909066CH ICON ALLOYS RECON PRO CHARCOAL - 18 X 9 / 6 X 5.5 / 40MM / 6.6" BS
Features and Benefits:
- Engineered for DOT compliance
- Patented InnerLock technology (U.S. Patent No. 11,090,976) provides the ultimate blend of on-road safety and off-road performance, ideal for the “weekend warrior”
- Bead retention system features alloy pins that are removable, reusable, and replaceable
- Hardened bead retention pins utilize a SAE J1926 O-ring seal and are constructed from high strength alloy that is thermochemically treated for extreme corrosion resistance
- Quick, easy, and safe tire installation and removal
- Strategically placed hardware for maximum protection from trail damage
- Compatible with a wide variety of tires without the need for any shims or special tools
- High-grade aluminum, removable, and replaceable HALO Wheel Armor protects wheel from trail damage
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass (compared to a traditional bead lock) improves handling characteristics and vehicle dynamics
- Aluminum alloy construction provides strength properties that are well suited for off-road use
- Super strong 3200 lbs load rating
ICON Technologies:
INNERLOCK™ & HALO Wheel Armor
InnerLock™ is ICON's patented, D.O.T. Compliant bead retention system, making these wheels legal on the street and a beast off-road.
InnerLock™ Technology uses a series of high strength alloy bead retention pins inserted through a thickened section of the wheel to act as a fence to physically prevent the tire bead from being pushed away from the wheel's inner lip. This simple but ingenious solution is patented, lab-tested, and has been trail-proven on the toughest terrain from coast to coast.
.jpg)

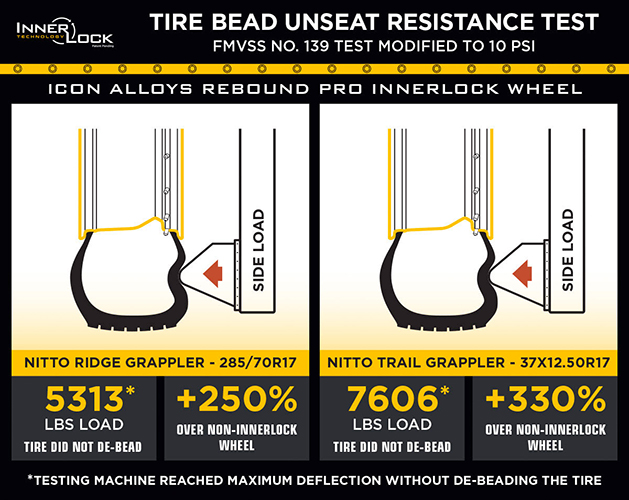

FMVSS (Federal Motor Vehicle Safety Standards) No.139 Tire Bead Unseat Resistance Test (modified to 10 psi). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire.

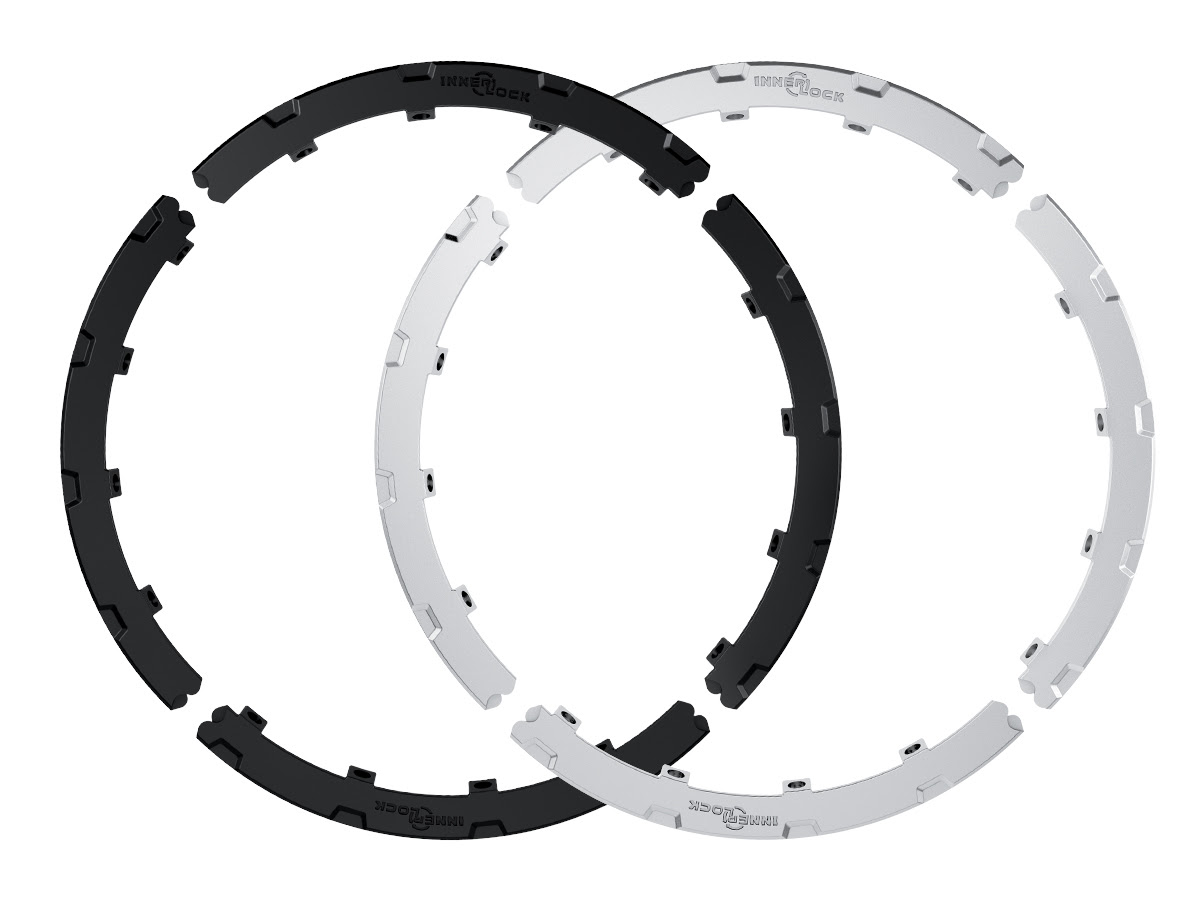

The all-new HALO Wheel Armor system is intelligently designed with segmented quarters, allowing for convenient and cost-effective replacement of individual segments if they incur damage, such as from rock rash. This unique feature eliminates the need to replace the entire set, providing flexibility and efficiency in maintenance. Moreover, the replacement process is seamless, as HALO segments can be installed or replaced without the necessity of dismounting the tire from the wheel. Crafted from high-grade aluminum, these segments are initially presented in a sleek satin black finish that come preinstalled on the Recon Pro. However, for those seeking a personalized touch, HALO is also offered in Raw Aluminum as a separate part that can be easily customized through painting or specialized coating in any color, offering a truly unique aesthetic.
.jpg)
HALO Wheel Armor shown with custom CERAKOTE finish/color combo. Custom colors are at the responsibility of the user.
RECON PRO TECHNOLOGY VIDEO
Here's an informative video showcasing the unique features and benefits of Recon PRO with the InnerLock™ Technology and HALO Wheel Armor features. Please use it to further familiarize yourself with the product, and share it with your customers and social media followers. It's also a great resource to embed on your own website to help explain Recon PRO to your customers.
RECON PRO
17 X 8.5" | 5-Lug, 6-Lug, 8-Lug
Features and Benefits:
- Engineered for D.O.T-Compliance
- Patented InnerLock technology (U.S. Patent No. 11,090,976) provides the ultimate blend of on-road safety and off-road performance, ideal for the “weekend warrior”
- Bead-retention system features alloy pins that are removable, reusable, and replaceable
- Hardened bead retention pins utilize a SAE J1926 O-ring seal and are constructed from high strength alloy that is thermochemically treated for extreme corrosion resistance
- Quick, easy, and safe tire installation and removal
- HALO Wheel Armor system constructed of high-grade aluminum with 4 individually replaceable segments
- Aggressive 16-spoke concave styling
- InnerLock & HALO bolt heads are located inside the barrel of the wheel, protected from rock damage
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass (compared to a traditional bead lock) improves handling characteristics and vehicle dynamics
- Aluminum alloy construction and 3,200 lbs load rating (4,000 lbs on 8-lug version) provides strength properties that are well suited for off-road use
- Charcoal or Satin Black powder coat finish
?
ABOUT ICON ALLOYS:
Developed by ICON Vehicle Dynamics (manufacturers of industry-leading performance suspension systems and shock absorbers) ICON Alloys was established with an objective to provide the off-road market quality wheels built with precision, performance, and strength in mind. Time after time in the development of suspension components the ICON R&D team ran into clearance, fitment, and steering geometry issues that limited the drivability and performance of a given vehicle. As this trend continued, the idea of manufacturing a line of wheels with the “form follows function” approach made more and more sense, and off to the drawing board it was…
PRECISION - Application-specific dimensions optimize vehicle dynamics and tire clearance for many of today’s most popular vehicles.
PERFORMANCE - Engineered to reduce unsprung weight and rotating mass for increased vehicle performance both on and off-road.
STRENGTH - Aluminum alloy construction provides high-strength properties that are well suited for heavy off-road abuse.
