NEW PRODUCTS: 2024 Lexus GX550 CDXS Coilovers & Complete Suspension Systems



ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed shocks, coilovers and complete suspension system for 2024 Lexus GX550. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios.

With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios.



Front Coilovers and rear shocks featuring CDXS are now available for 2024 Lexus GX550. In addition, we've configured CDXS versions of our Stage 8 and Stage 9 Complete Suspension Systems for the GX550, making the component selection process easy for all Lexus GX550 enthusiasts.

---



GX550 CDXS SHOCKS & COILOVERS

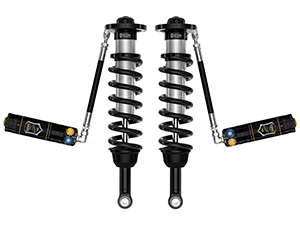

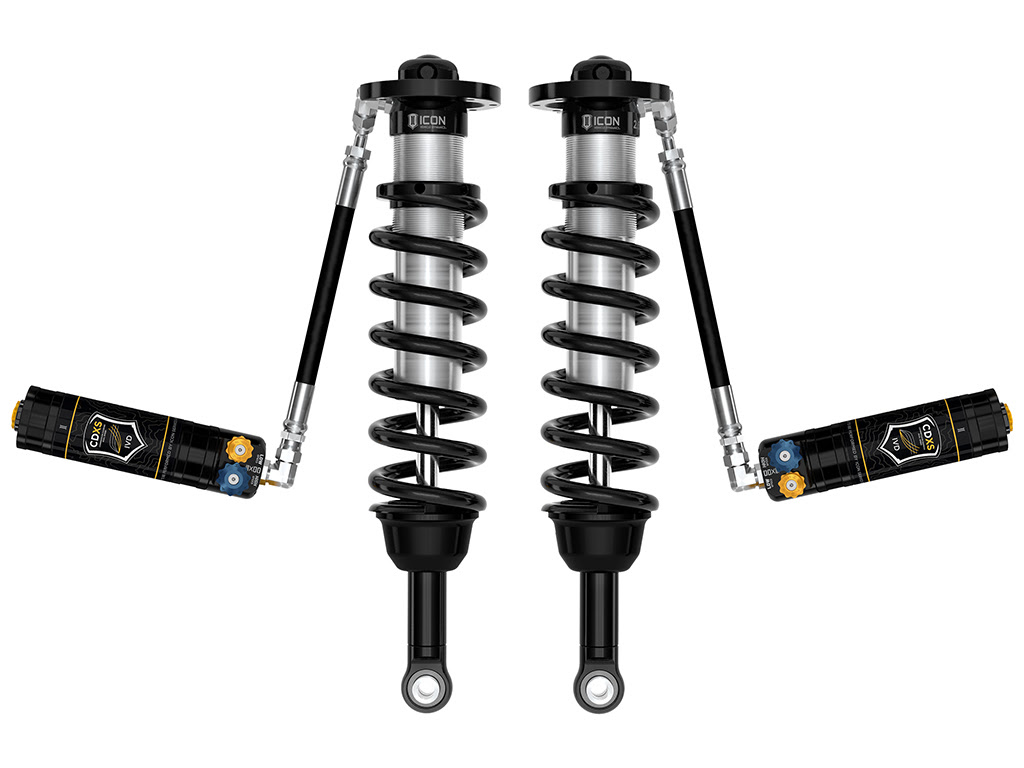

GX550 CDXS FRONT COILOVERS



58790X    24 GX550 FRONT 2.5 VS RR CDXS COILOVER KIT

KEY FEATURES:

• CDXS provides independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness.
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

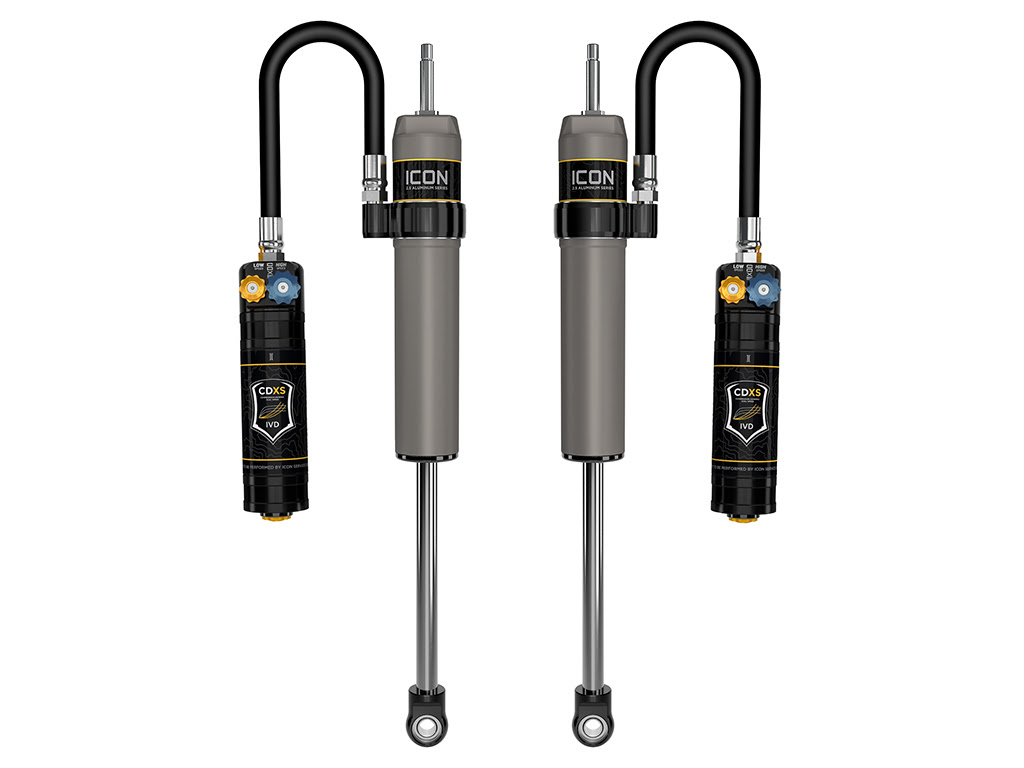

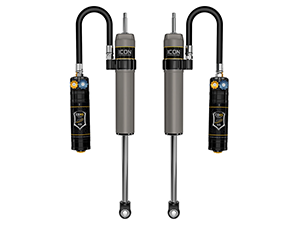

GX550 CDXS REAR SHOCKS

57870XP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDXS RR PAIR

KEY FEATURES:

• CDXS provides independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness.
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• Rubber dust boot included for added shaft protection
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

  ---

  COMPLETE SUSPENSION SYSTEMS

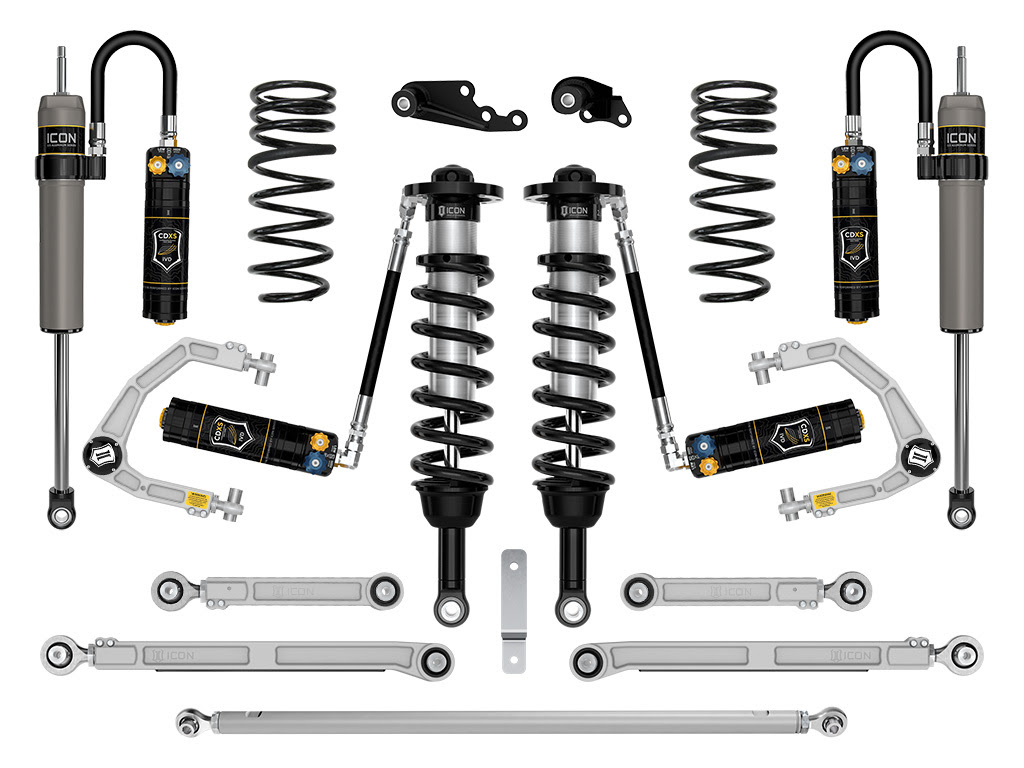

For your ordering convenience we've pre-configured two Stages of ICON Performance Suspension Systems to include these new CDXS-equipped shocks and coilovers.  These Stages are configured the same as our standard Stage 8 and Stage 9, but with CDXS instead of CDCV. These slot into the rest of our complete Suspension Systems for Lexus GX550, which range from Stage 1 to Stage 10.

---

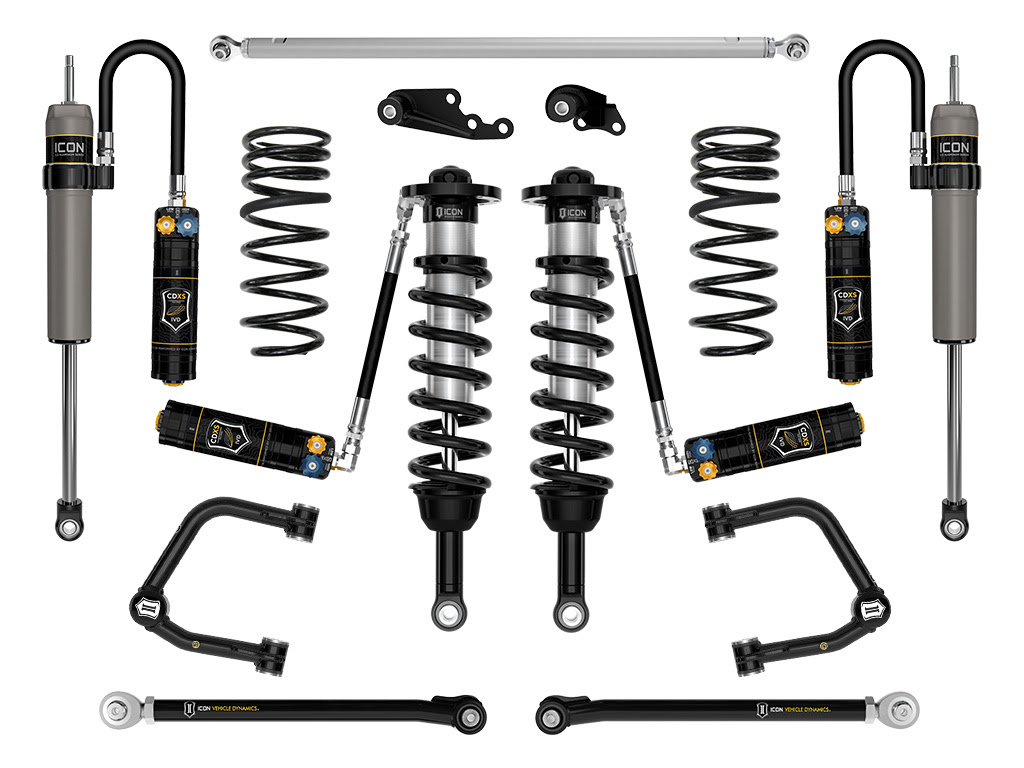

STAGE 8 WITH CDXS

K53358TD  24 GX550 1.25-3" STAGE 8 SUSPENSION SYSTEM CDXS TUBULAR
K53358D    24 GX550 1.25-3" STAGE 8 SUSPENSION SYSTEM CDXS BILLET

SYSTEMS INCLUDE:

• 58790X    24 GX550 FRONT 2.5 VS RR CDXS COILOVER KIT
• 58452DJ    24 TACOMA/LC250/GX550 TUBULAR UCA DJ PRO KIT
   or  58552DJ    24 TACOMA/LC250/GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870XP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDXS RR PAIR
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or  54003    24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

KEY FEATURES:

• Shocks & Coilovers equipped with CDXS for independent adjustability of high speed and low speed compression force to fine-tune for handling response and aggressiveness.
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular or Billet rear lower links improve rear end articulation and allow for pinion angle adjustment. Billet links feature on-vehicle adjustability
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
