NOW AVAILABLE
ICON is excited to announce the availability of Gold Anodized finish on select billet suspension components. This all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provides a custom appearance to any build. Gold Anodized is initially available on Upper Control Arms for the 2024 Toyota Tacoma, 24 Land Cruiser 250 (LC250) and 24 Lexus GX550. It's also available on Upper Rear Suspension Links and Lower Rear Suspension Links for 2024 Tacoma, 22-24 Tundra and 23-24 Sequoia. Additional applications will be added to the Gold Anodized collection soon, so please let us know what you'd like to see it in next!
FRONT UPPER CONTROL ARMS

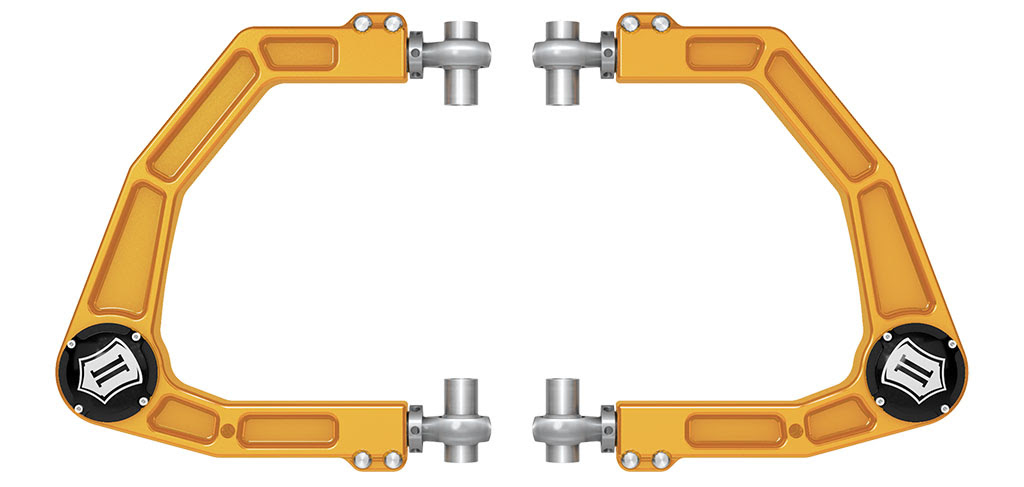

58552GDJ 24 TACOMA / LC250 / GX550 BILLET UCA DJ PRO KIT GOLD ANO
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2024 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series and Lexus GX550 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for your 2024 Toyota Tacoma, Toyota Land Cruiser or Lexus GX550.
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
KEY FEATURES:
- CNC machined 6061 billet aluminum construction
- Gold anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset (24 Tacoma)
- Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset (24 LC250 / GX550)
- Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: Compatible with 2024 Tacoma equipped with 0-3” of front lift over stock
- TECH NOTE: Also available with classic satin silver anodized finish. See part number 58552DJ
REAR UPPER SUSPENSION LINKS

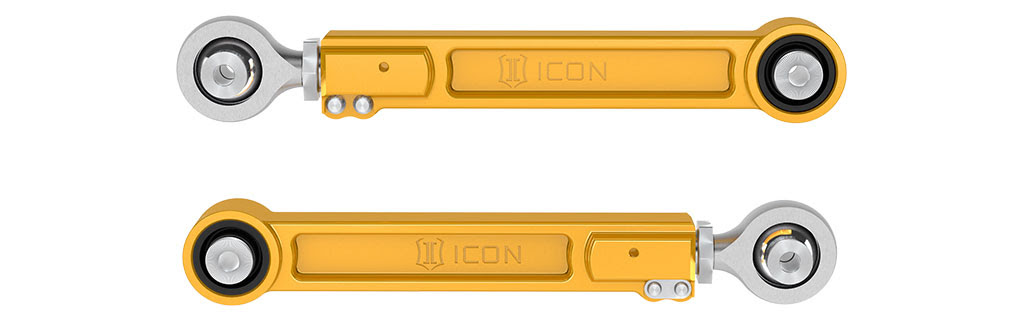

54102G 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA BILLET REAR UPPER LINK KIT GOLD ANO
.png)
ICON’s billet aluminum rear upper link arms for the 2022-2024 Toyota Tundra, 2023-2024 Toyota Sequoia, 2024 Toyota Tacoma , and 2024 Toyota Land Cruiser 250 Series are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
KEY FEATURES:
- Vehicle specific design
- On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- CNC machined 6061 aluminum construction
- Gold anodized finish
- Large FK Bearing JMX16T PTFE-lined rod ends
- Maintenance free, dual durometer bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
TECH NOTES:
- TECH NOTE: Tundra/Sequoia equipped with Load-leveling Rear Height Control Air Suspension and/or automatic leveling headlights also require part number 55153
- TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers
- TECH NOTE: Will not fit 2024 Toyota Tacoma TRD PreRunner
REAR LOWER SUSPENSION LINKS

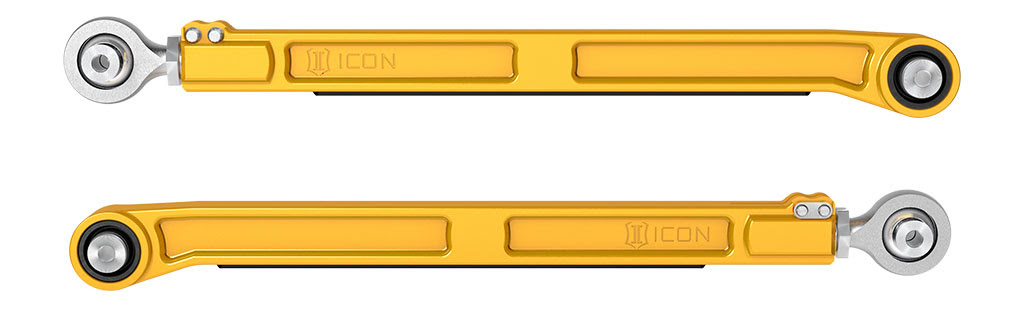

54002G 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT GOLD ANO
.png)
ICON’s billet aluminum rear lower link arms for the 2022-2024 Toyota Tundra, 2023-2024 Toyota Sequoia, and 2024 Toyota Tacoma are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. ICON’s engineering team has also gone a step further in the development of these products by incorporating features such as replaceable nylon rock sliders to prevent any hang-ups on the trail. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
KEY FEATURES:
- On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon Rock Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Gold anodized finish
- Large FK Bearing JMX16T PTFE-lined rod ends
- Maintenance free, dual durometer bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
TECH NOTES:
- TECH NOTE: Will not fit 2024 Toyota Tacoma TRD PreRunner
