NEW PRODUCTS

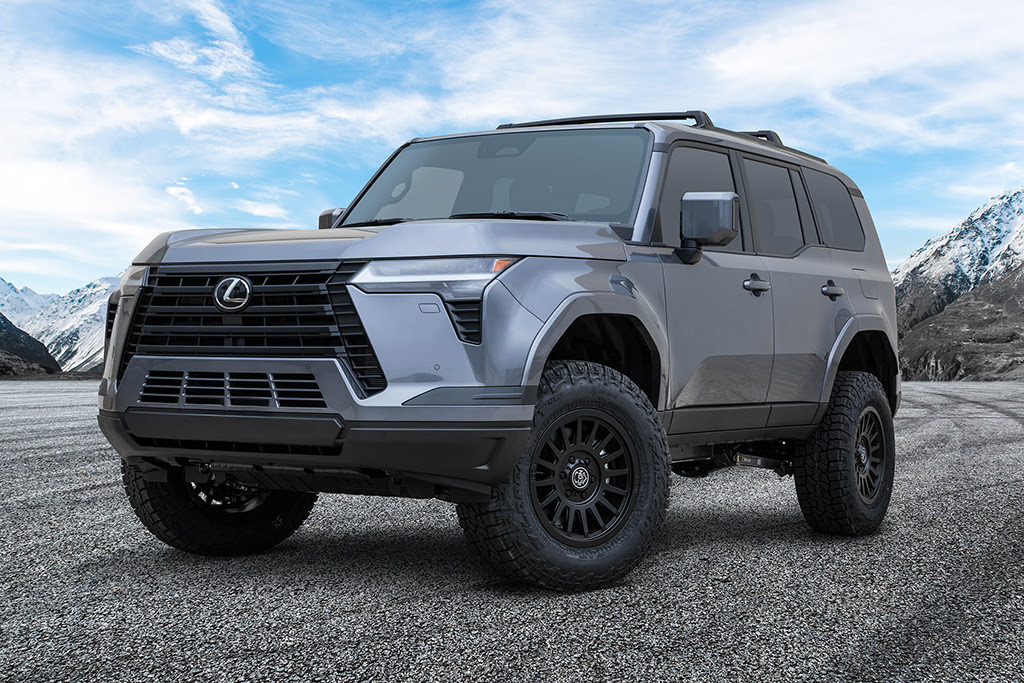

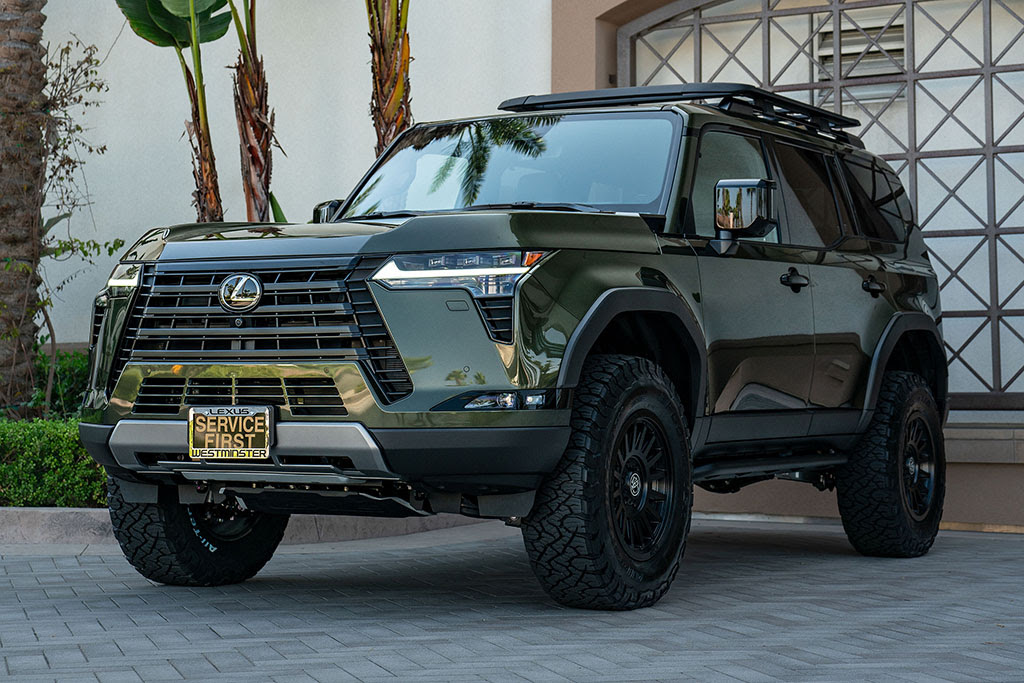

2024 Lexus GX550
Coilovers & Complete Suspension Systems

ICON is proud to introduce a range of performance suspension components and complete systems for the new 2024 Lexus GX550. Together, these components yield 1.25" to 3" of suspension lift and leveling, to easily fit up to 34" tires* (or larger with some trimming). Performance is built in, with increased suspension travel and improved ride and handling characteristics both on- and off-road. Individual components include 2.5 Vehicle Series front coilovers and rear shocks, billet or tubular upper control arms featuring the incredible Delta Joint Pro, and ICON custom 2" Dual Rate Rear Coil Springs. To assist GX550 owners in building the suspension system to meet their needs we have pre-configured 10 Stages of our Complete Suspension Systems.

*For example, you can fit a 285/75/18 or 295/70/18 (34x11.50) tire when installed on an 18x9 wheel with +40mm offset.



Featuring the Incredible Delta Joint PRO

ICON Upper Control Arms for Lexus GX550 feature the high performance Delta Joint PRO for unmatched range of motion, strength and durability. They're also easily serviceable/rebuildable. Delta Joint PRO is featured in both the tubular and billet versions of our UCA, which are available on their own or as part of our Complete Suspension Systems in Stage 2 and up.



---

---



Complete Suspension Systems

For your ordering convenience we've pre-configured ten Stages of ICON Performance Suspension Systems to meet just about any level of performance and budget expectations.  Stage 1 includes our 2.5 VS front coilovers with internal reservoir along with our 2.0 rear shocks for improved ride and performance, and fitment of up to 34" tires* (or larger with some trimming and further modifications). At the other end of the spectrum our fully loaded Stage 10 features billet or tubular rear links and UCAS with the incredible Delta Joint Pro, along with ICON 2.5 VS Coilovers and Shocks featuring cutting-edge CDEV electronic performance technology.

*For example, you can fit a 285/75/18 or 295/70/18 (34x11.50) tire when installed on an 18x9 wheel with +40mm offset.

TECH NOTES
The following tech and fitment data applies to all of these Suspension System Stages:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
• Recommended Aftermarket Tires: 34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #175: Will not fit GX550 Overtrail
• TECH NOTE (Stage 10): An iOS operated device is required to run ICON Intelligent Control App

---

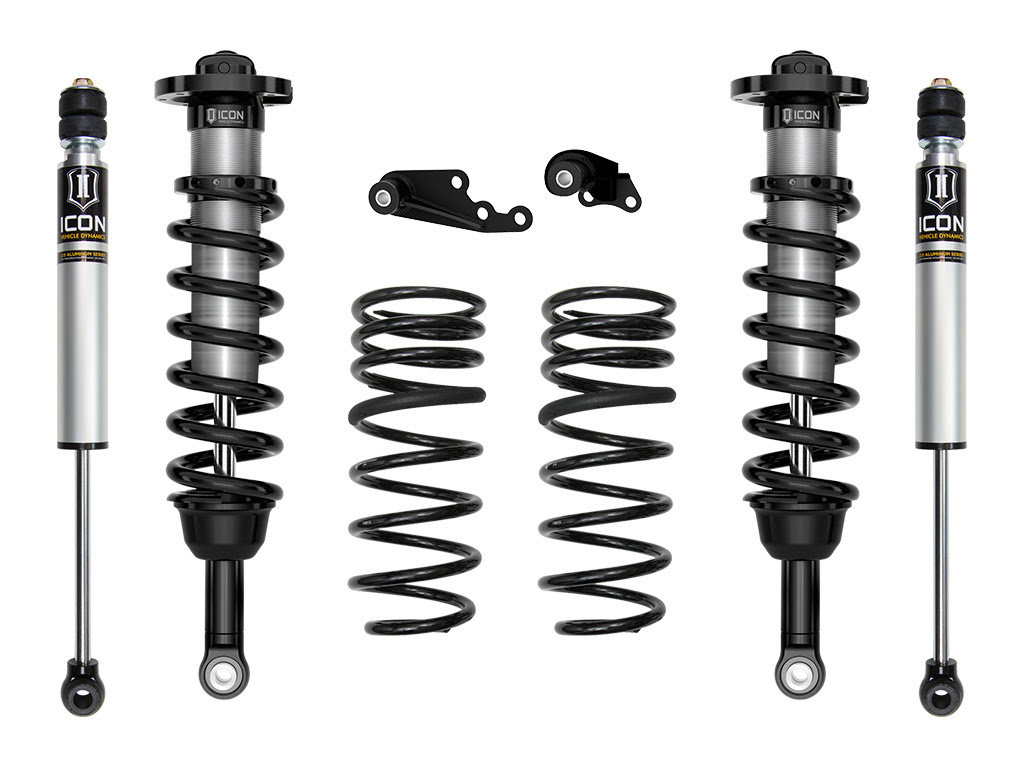

STAGE 1

K53351    24 GX550 1.25-3" STAGE 1 SUSPENSION SYSTEM

SYSTEM INCLUDES

• 58690    24 GX550 FRONT 2.5 VS IR COILOVER KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 56520    24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)

KEY FEATURES:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

---

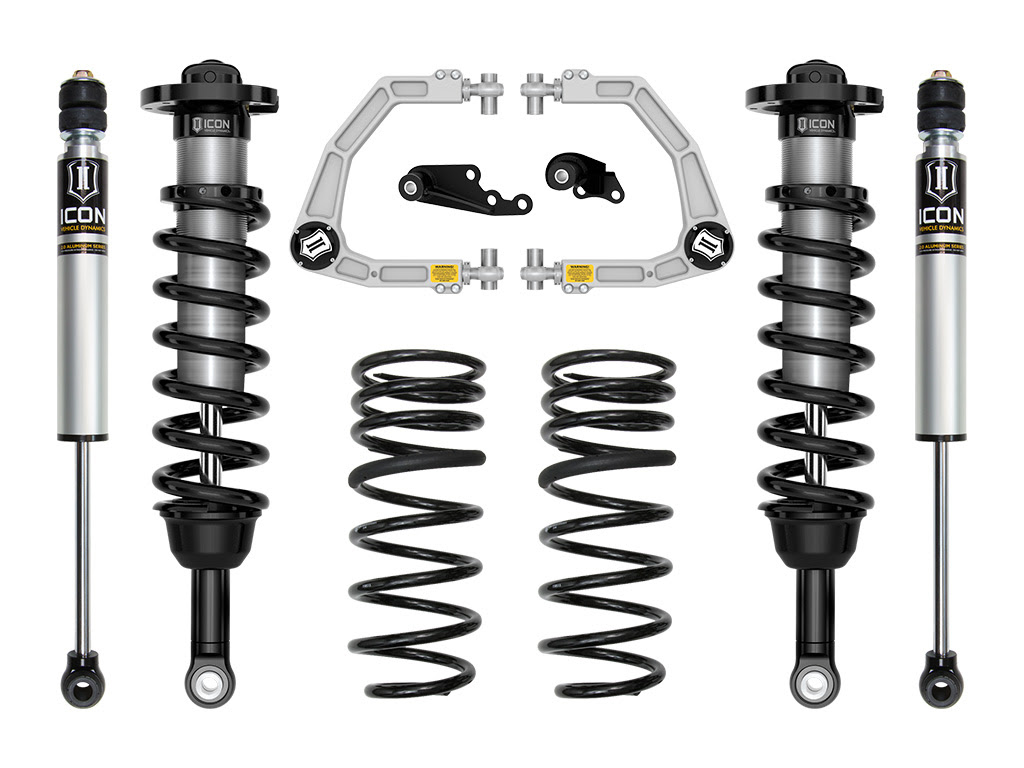

STAGE 2

K53352T    24 GX550 1.25-3" STAGE 2 SUSPENSION SYSTEM TUBULAR
K53352    24 GX550 1.25-3" STAGE 2 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58690    24 GX550 FRONT 2.5 VS IR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 56520    24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)

KEY FEATURES:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

---

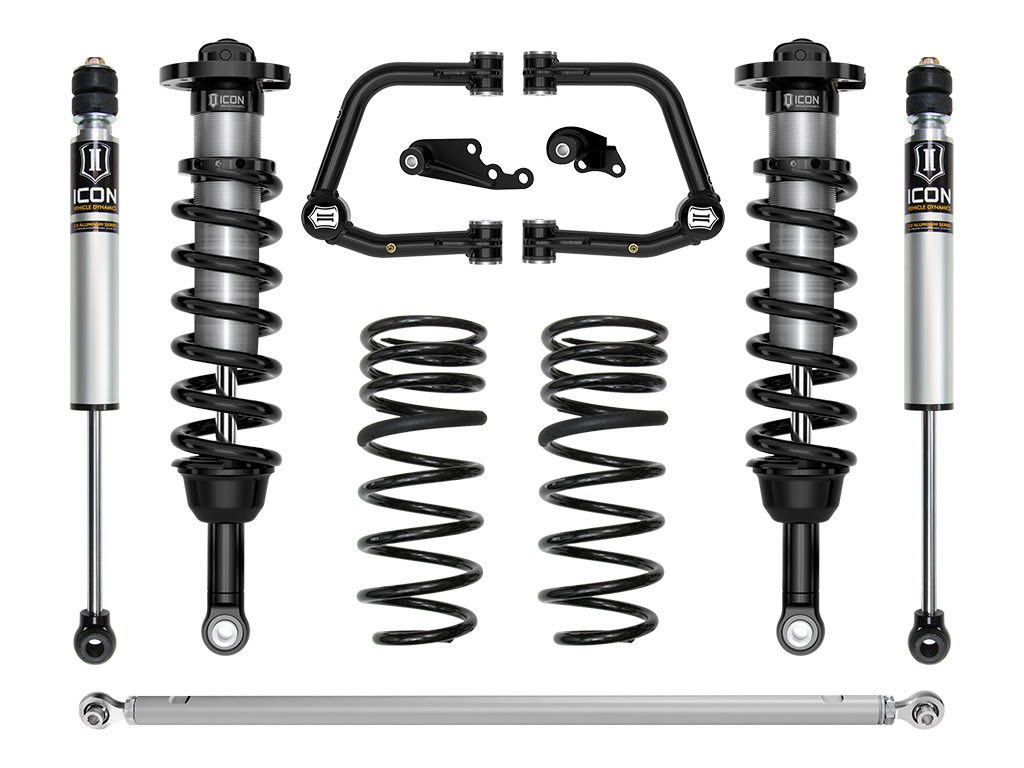

STAGE 3

K53353T    24 GX550 1.25-3" STAGE 3 SUSPENSION SYSTEM TUBULAR
K53353    24 GX550 1.25-3" STAGE 3 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58690    24 GX550 FRONT 2.5 VS IR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 56520    24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

KEY FEATURES:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

---

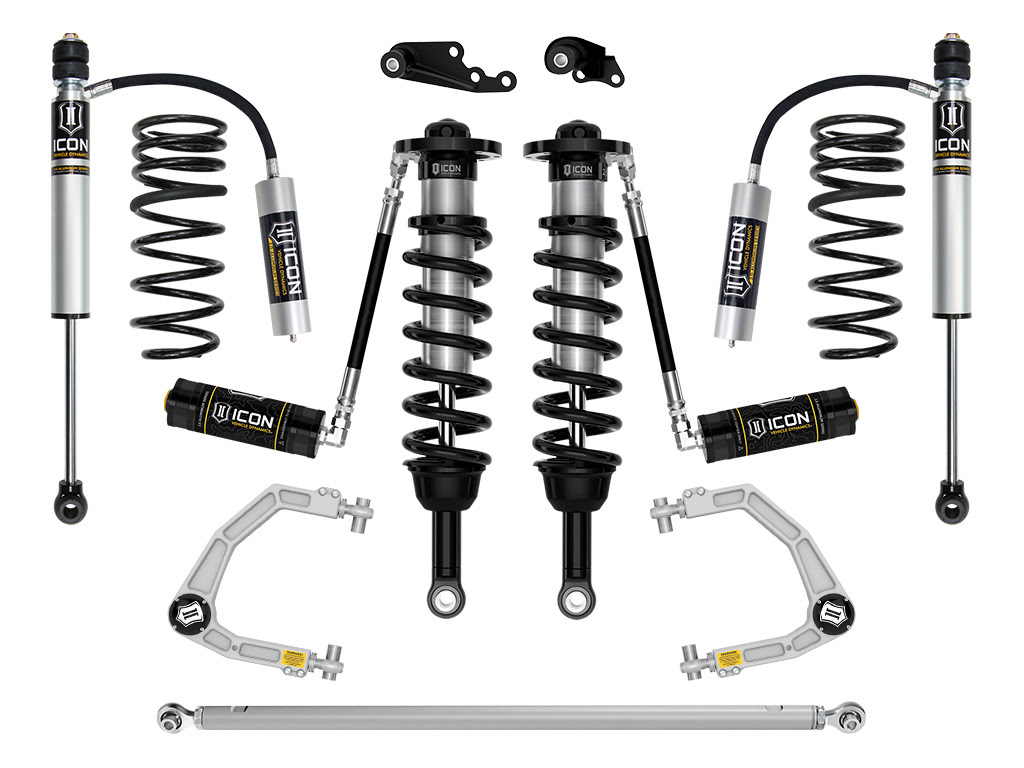

STAGE 4

K53354T    24 GX550 1.25-3" STAGE 4 SUSPENSION SYSTEM TUBULAR
K53354    24 GX550 1.25-3" STAGE 4 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58790    24 GX550 FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 56520R    24 LC250/24 GX550 0-3" DRIVER REAR 2.0 VS RR
• 56522R    24 LC250/24 GX550 0-3" PASS REAR 2.0 VS RR
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts

---

STAGE 5

K53355T    24 GX550 1.25-3" STAGE 5 SUSPENSION SYSTEM TUBULAR
K53355    24 GX550 1.25-3" STAGE 5 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58790    24 GX550 FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870P    24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection

2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

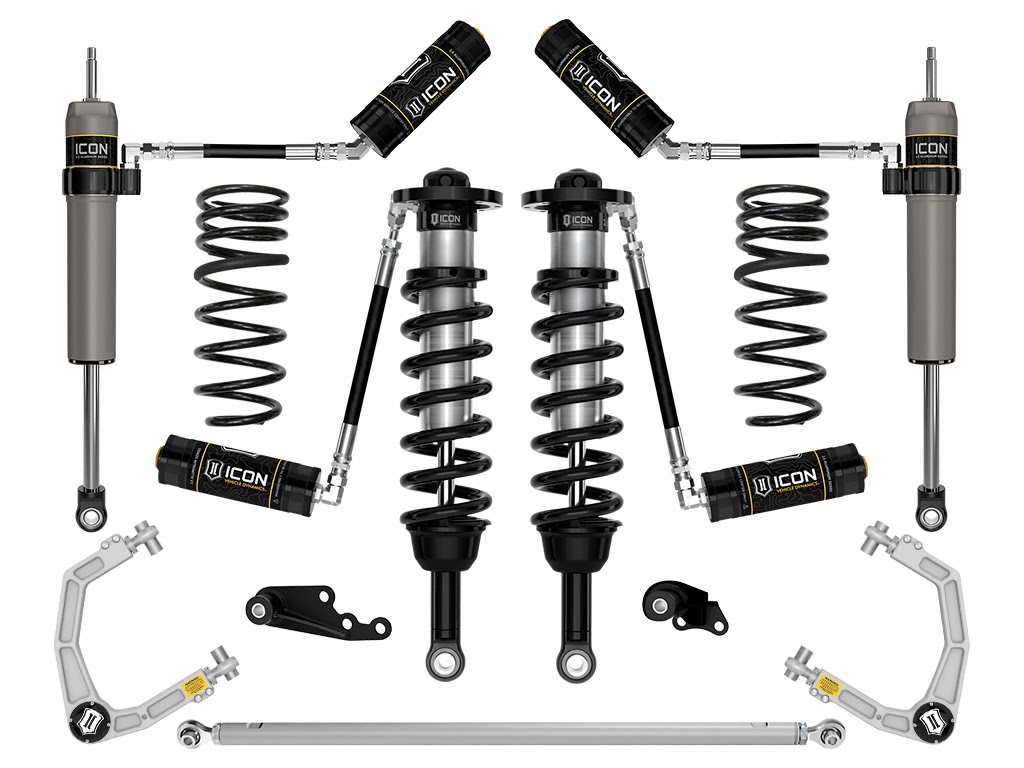

STAGE 6

K53356T    24 GX550 1.25-3" STAGE 6 SUSPENSION SYSTEM TUBULAR
K53356    24 GX550 1.25-3" STAGE 6 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58790    24 GX550 FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870P    24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

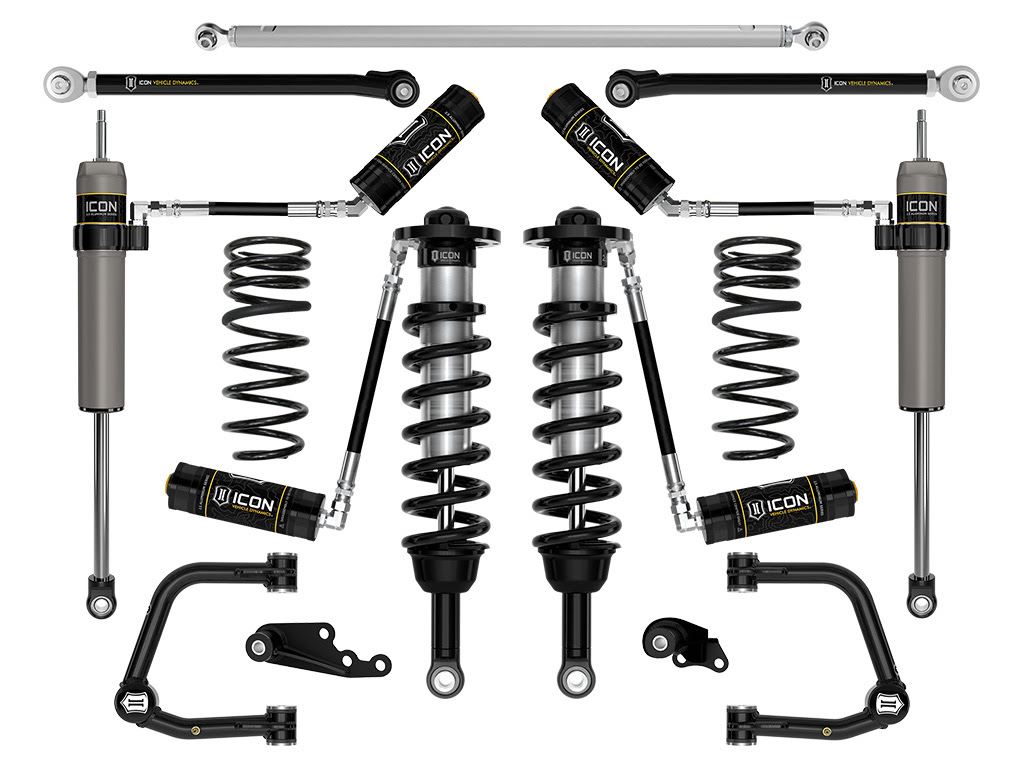

STAGE 7

K53357T    24 GX550 1.25-3" STAGE 7 SUSPENSION SYSTEM TUBULAR
K53357    24 GX550 1.25-3" STAGE 7 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• X550 FRONT 2.5 VS RR COILOVER KIT58790    24 G
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870P    24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003  24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

  ---

  STAGE 8

K53358T    24 GX550 1.25-3" STAGE 8 SUSPENSION SYSTEM TUBULAR
K53358    24 GX550 1.25-3" STAGE 8 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58790C    24 GX550 FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870CP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003  24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

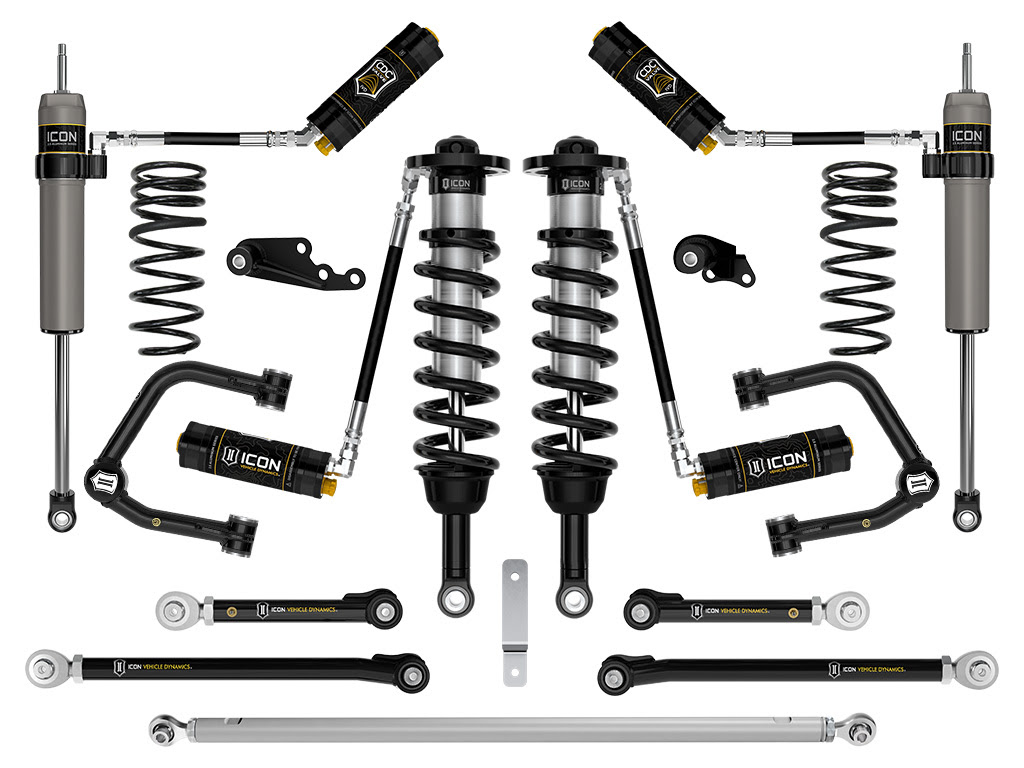

STAGE 9

K53359T    24 GX550 1.25-3" STAGE 9 SUSPENSION SYSTEM TUBULAR
K53359    24 GX550 1.25-3" STAGE 9 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58790C    24 GX550 FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55156    22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 57870CP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003  24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
• 54102T    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
   or 54102    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• 55161    24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear upper and lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

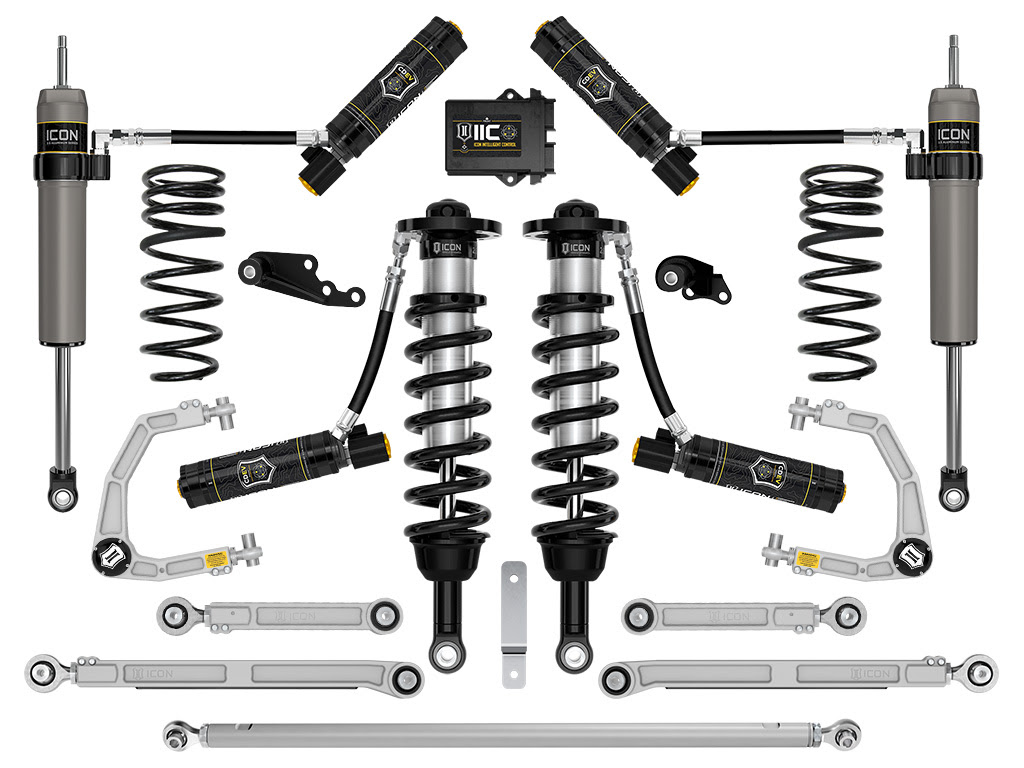

STAGE 10

K53360T    24 GX550 1.25-3" STAGE 10 SUSPENSION SYSTEM TUBULAR
K53360    24 GX550 1.25-3" STAGE 10 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791E    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDEV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870EP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDEV RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 53509    24 TACOMA/24 LC250 IIC INSTALL KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Billet or Tubular rear upper and lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
