NEW: 2024 Toyota Landcruiser 250 Coilovers & Suspension Systems

NEW PRODUCTS

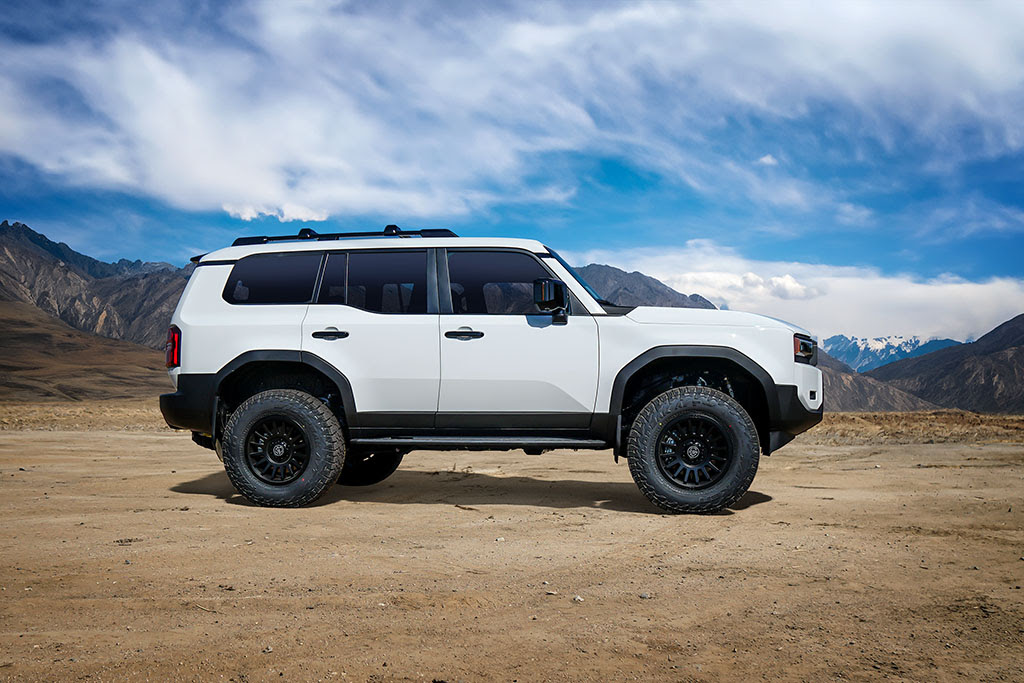

2024 Toyota Landcruiser 250 Coilovers & Complete Suspension Systems

ICON is proud to introduce a range of performance suspension components and complete systems for the new 2024 Toyota Landcruiser 250. Together, these components yield 1.25" to 3" of suspension lift and leveling, to fit up to 34" tires* (or larger with some trimming). Performance is built in, with increased suspension travel and improved ride and handling characteristics both on- and off-road. Individual components include 2.5 Vehicle Series front coilovers and rear shocks, billet or tubular upper control arms featuring the incredible Delta Joint Pro, and ICON custom 2" Dual Rate Rear Coil Springs. To assist Landcruiser owners in building the suspension system to meet their needs we have pre-configured 12 Stages of our Complete Suspension Systems.

*For example, you can fit a 285/75/18 or 295/70/18 (34x11.50) tire when installed on an 18x9 wheel with +40mm offset.

Featuring the Incredible Delta Joint PRO

ICON Upper Control Arms for Landcruiser 250 feature the high performance Delta Joint PRO for unmatched range of motion, strength and durability. They're also easily serviceable/rebuildable. Delta Joint PRO is featured in both the tubular and billet versions of our UCA, which are available on their own or as part of our Complete Suspension Systems in Stage 2 and up.



---

Suspension Components

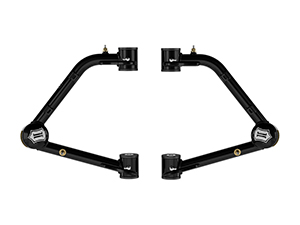

58452DJ

24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT

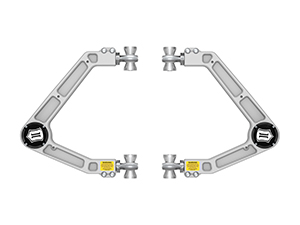

58552DJ

24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT

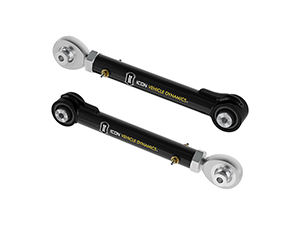

54102T

22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT

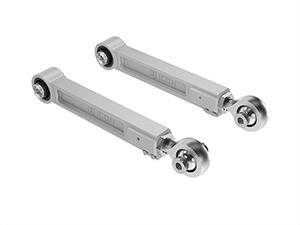

54102

22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT

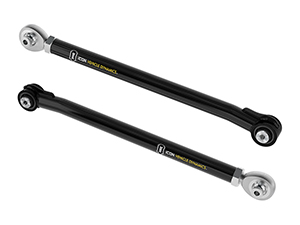

54003T

24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT

54003

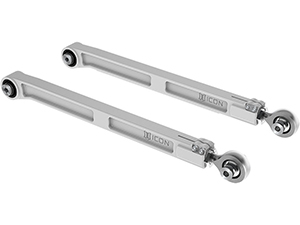

24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

58552GDJ

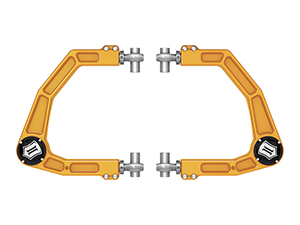

24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT GOLD ANO

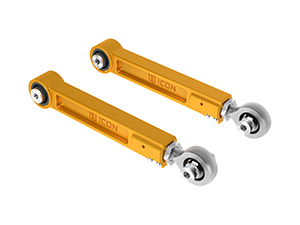

54102G

22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT GOLD

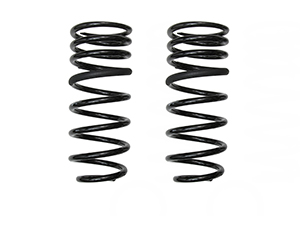

52752

24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

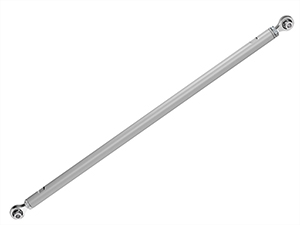

54202

22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

58691

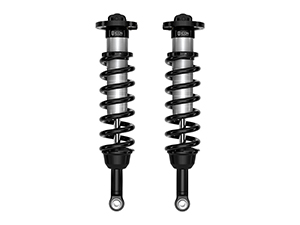

24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT

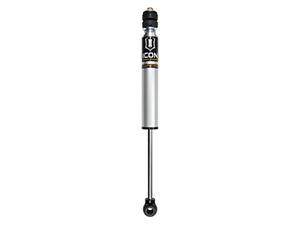

56520

24 LC250/24 GX550 0-3" REAR 2.0 VS IR

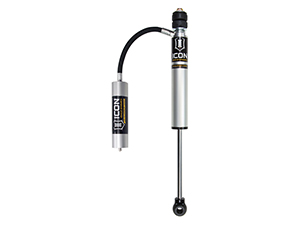

56520R

24 LC250/24 GX550 0-3" DRIVER REAR 2.0 VS RR

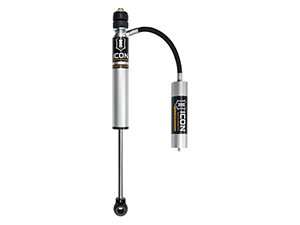

56522R

24 LC250/24 GX550 0-3" PASS REAR 2.0 VS RR

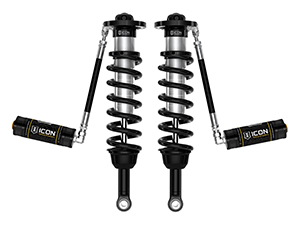

58791

24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT

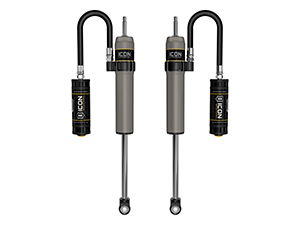

57870P

24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR

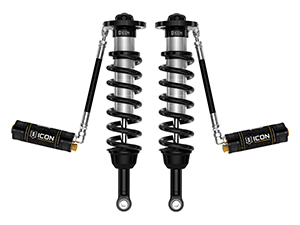

58791C

24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDCV COILOVER KIT

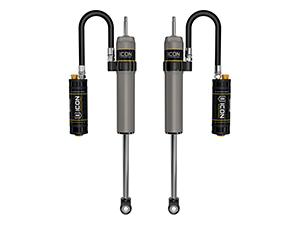

57870CP

24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR

58791E

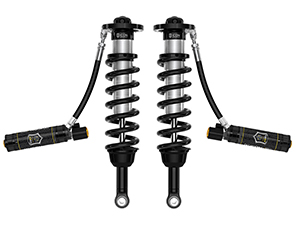

24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDEV COILOVER KIT

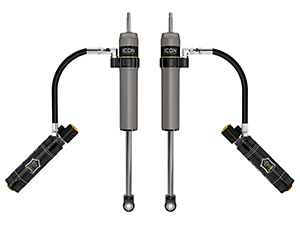

57870EP

24 LC250/24 GX550 0-3" REAR 2.5 VS CDEV RR PAIR

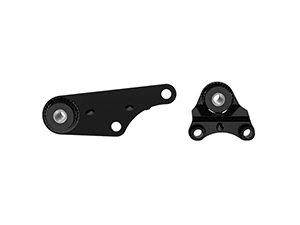

55160

24 TACOMA/24 LC250 DIFF DROP KIT

55161

24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT

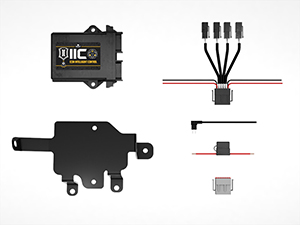

53509

24 TACOMA/24 LC250 IIC INSTALL KIT

---



Complete Suspension Systems

For your ordering convenience we've pre-configured twelve Stages of ICON Performance Suspension Systems to meet just about any level of performance and budget expectations.  Stage 1 includes our 2.5 VS front coilovers with internal reservoir along with our 2.0 rear shocks for improved ride and performance, and fitment of up to 33" tires (or larger with some trimming and further modifications). At the other end of the spectrum our fully loaded Stage 12 features billet or tubular UCAS with the incredible Delta Joint Pro, along with ICON 2.5 VS Coilovers and Shocks featuring cutting-edge CDEV electronic performance technology.

TECH NOTES
The following tech and fitment data applies to all of these Suspension System Stages:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• TECH NOTE: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift

---

STAGE 1

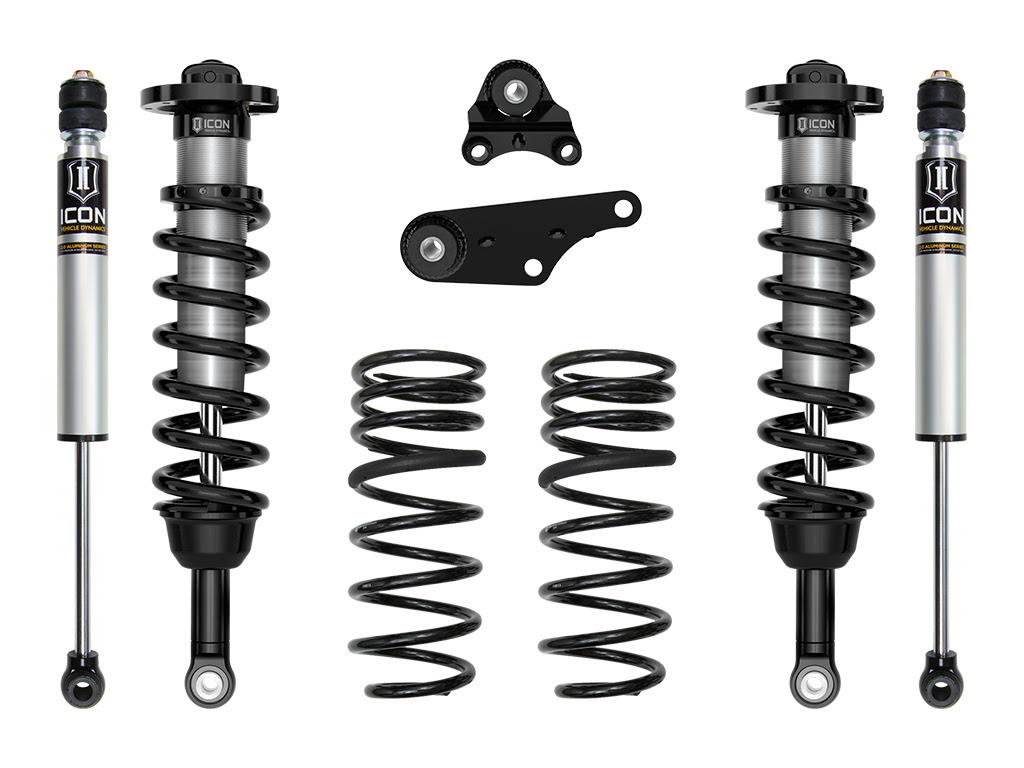

K53361    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 1 SUSPENSION SYSTEM

SYSTEM INCLUDES

• 58691    24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 56520    24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

KEY FEATURES:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

  ---

  STAGE 2

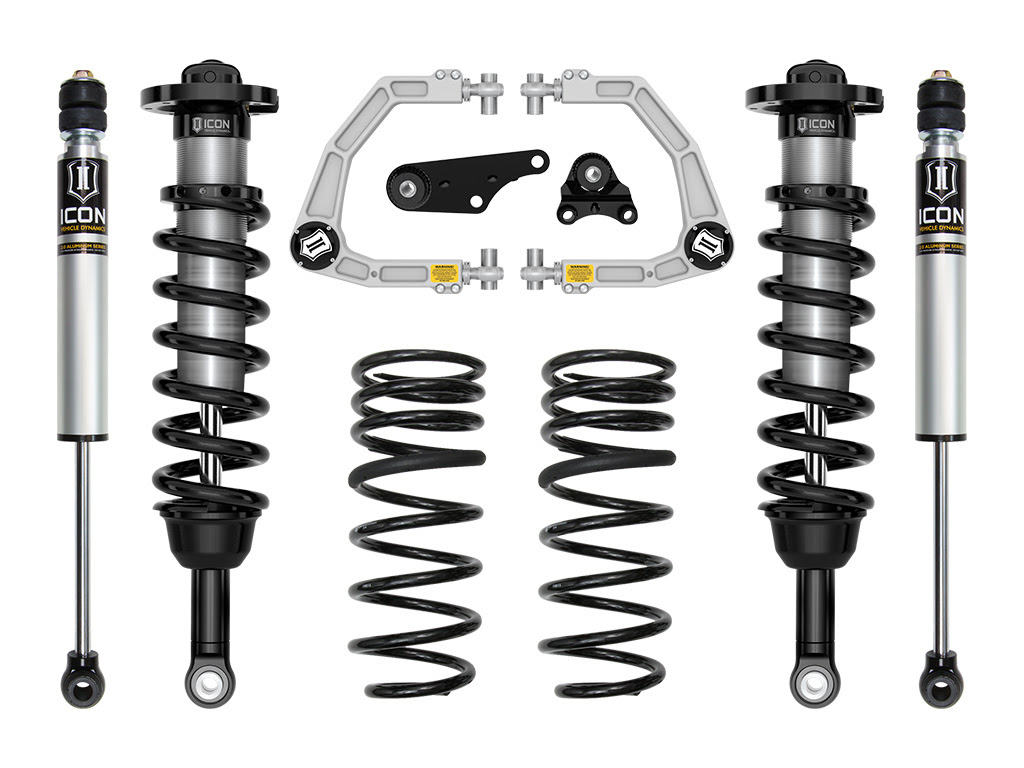

K53362T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 2 SUSPENSION SYSTEM TUBULAR
K53362    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 2 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58691    24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 56520    24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

KEY FEATURES:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

  ---

  STAGE 3

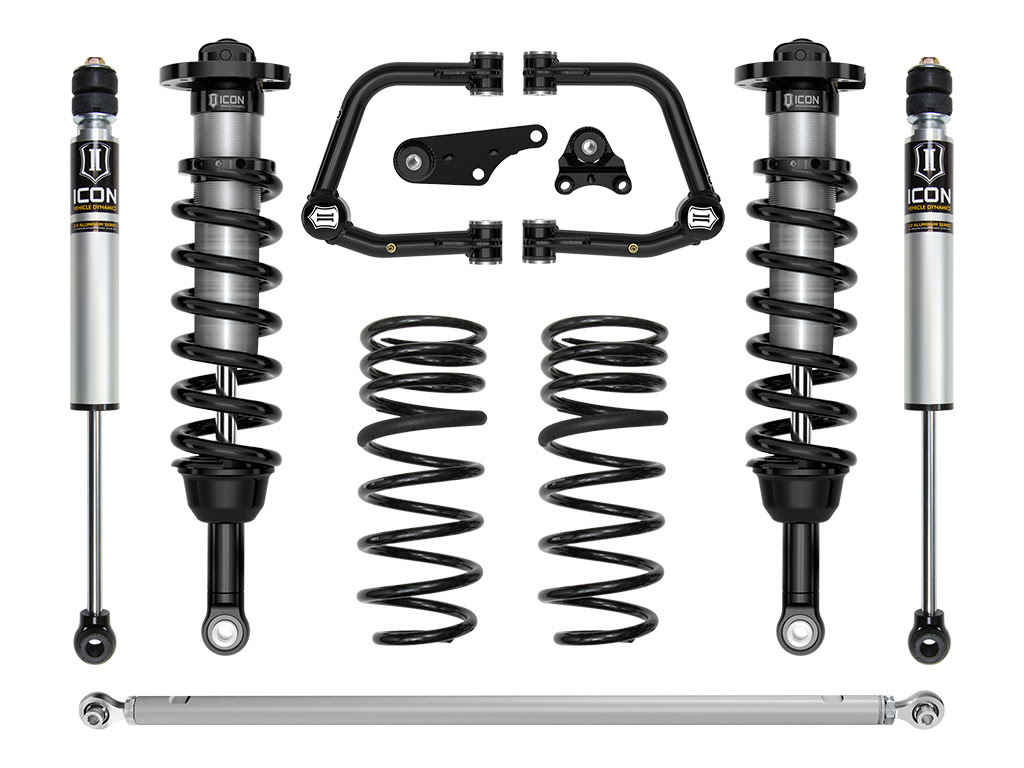

K53363T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 3 SUSPENSION SYSTEM TUBULAR
K53363    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 3 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58691    24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 56520    24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

KEY FEATURES:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

---

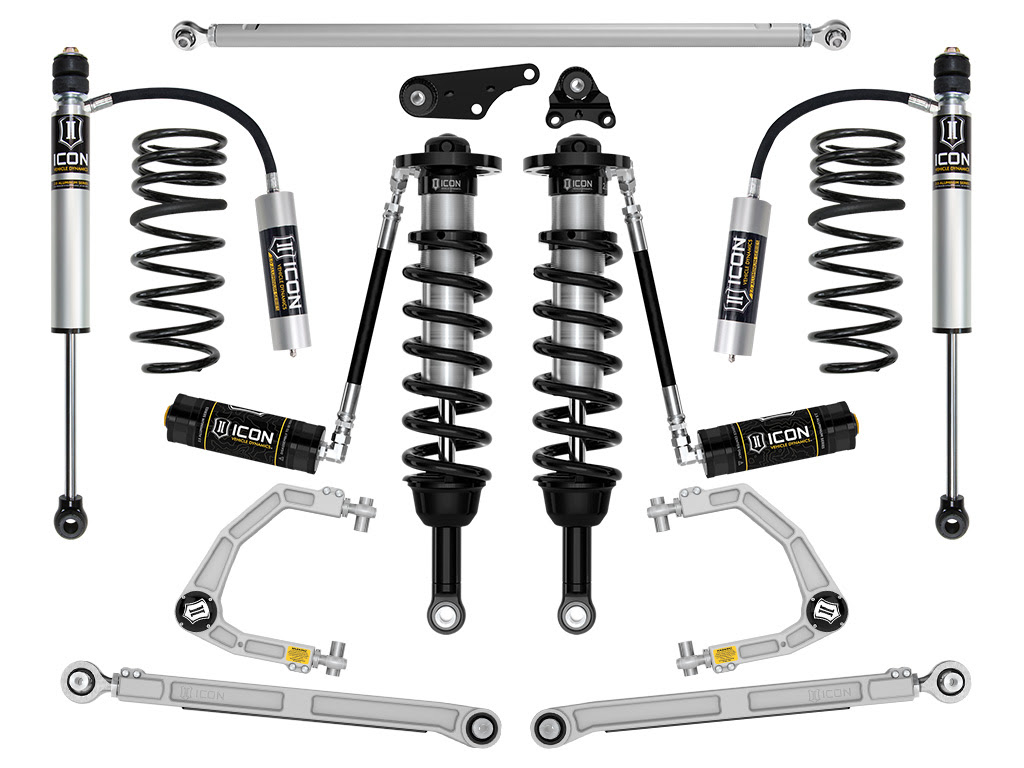

STAGE 4

K53364T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR
K53364    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 4 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 56520R    24 LC250/24 GX550 0-3" DRIVER REAR 2.0 VS RR
• 56522R    24 LC250/24 GX550 0-3" PASS REAR 2.0 VS RR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003  24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts

  ---

  STAGE 5

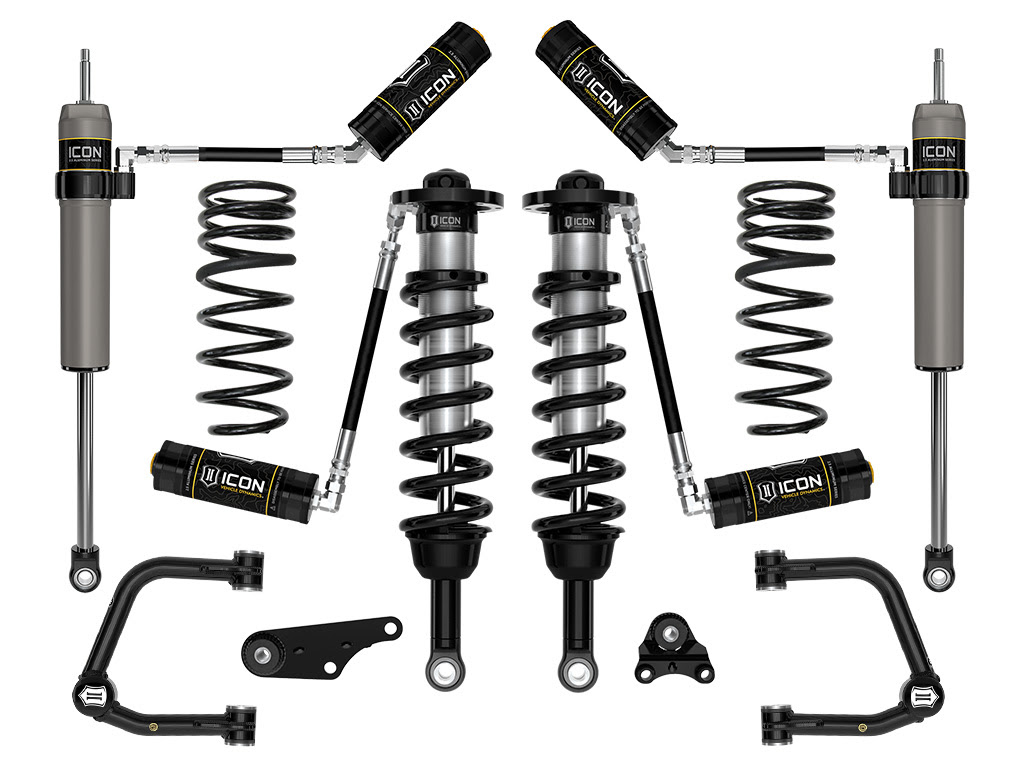

K53365T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR
K53365    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870P    24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

  ---

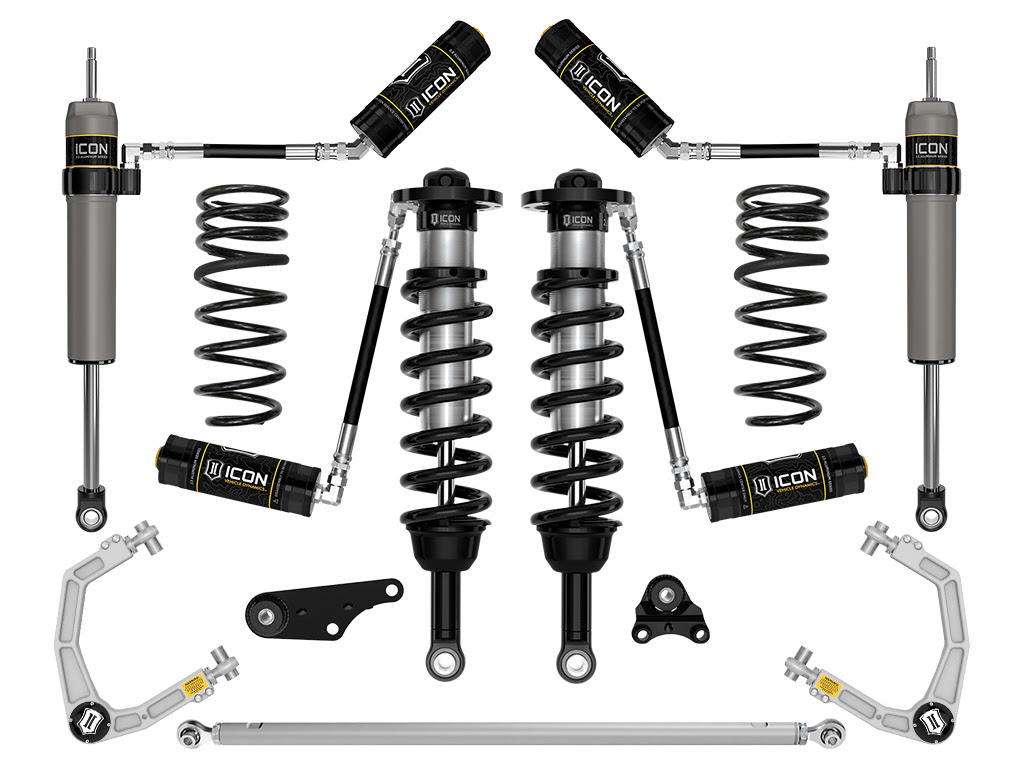

  STAGE 6

K53366T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 6 SUSPENSION SYSTEM TUBULAR
K53366    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 6 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870P    24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

STAGE 7

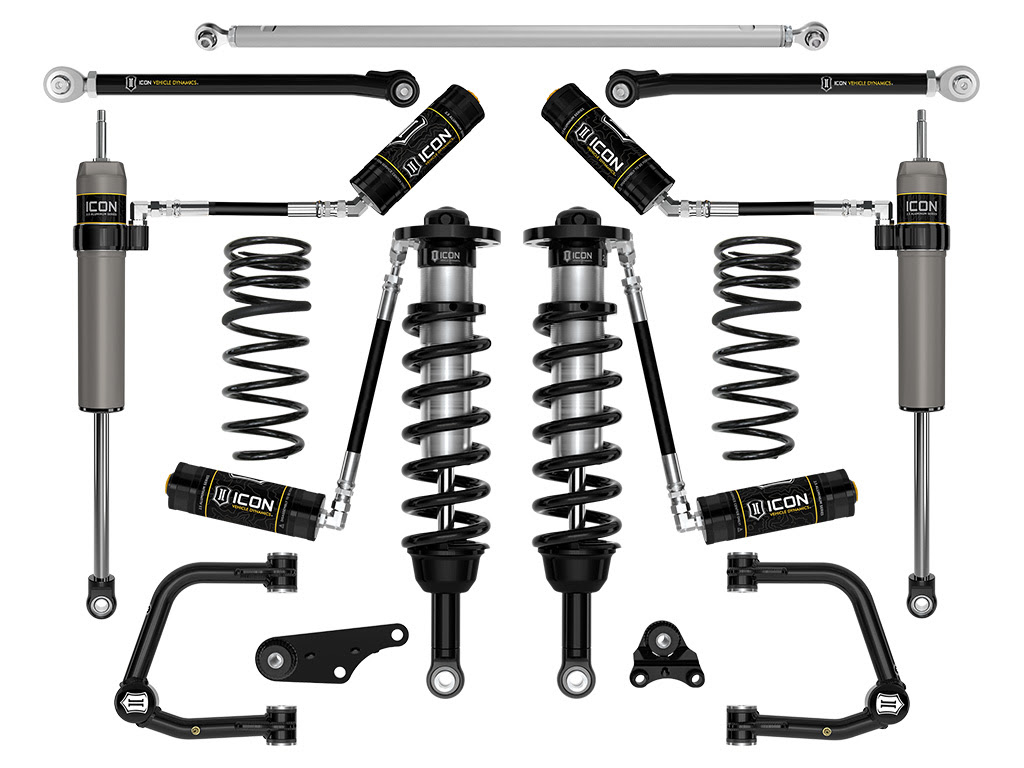

K53367T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 7 SUSPENSION SYSTEM TUBULAR
K53367    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 7 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870P    24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003  24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

  ---

  STAGE 8

K53368T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 8 SUSPENSION SYSTEM TUBULAR
K53368    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 8 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791C    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870CP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003  24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

  ---

  STAGE 9

K53369T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 9 SUSPENSION SYSTEM TUBULAR
K53369    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 9 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791C    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDCV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870CP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDCV RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003   24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
• 54102T    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
   or 54102   22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• 55161    24 LC250/24 GX550 REAR UPPER LINK SENSOR BRACKET KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Billet or Tubular rear upper and lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

STAGE 10

K53370T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 10 SUSPENSION SYSTEM TUBULAR
K53370    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 10 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791E    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDEV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870EP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDEV RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 53509    24 TACOMA/24 LC250 IIC INSTALL KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

STAGE 11

K53371T    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 11 SUSPENSION SYSTEM TUBULAR
K53371    24 LAND CRUISER 250 SERIES 1.25-3" LIFT STAGE 11 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 58791E    24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR CDEV COILOVER KIT
• 58452DJ    24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
   or 58552DJ    24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
• 55160    24 TACOMA/24 LC250 DIFF DROP KIT
• 57870EP    24 LC250/24 GX550 0-3" REAR 2.5 VS CDEV RR PAIR
• 52752    24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
• 54202    22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
• 54003T    24 LC250/24 GX550 TUBULAR REAR LOWER LINK KIT
   or 54003   24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
• 53509    24 TACOMA/24 LC250 IIC INSTALL KIT

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

---

STAGE 12
