2023 Chevy Colorado (Standard Track Width) 2.5 VS Coilovers & Complete Suspension Systems

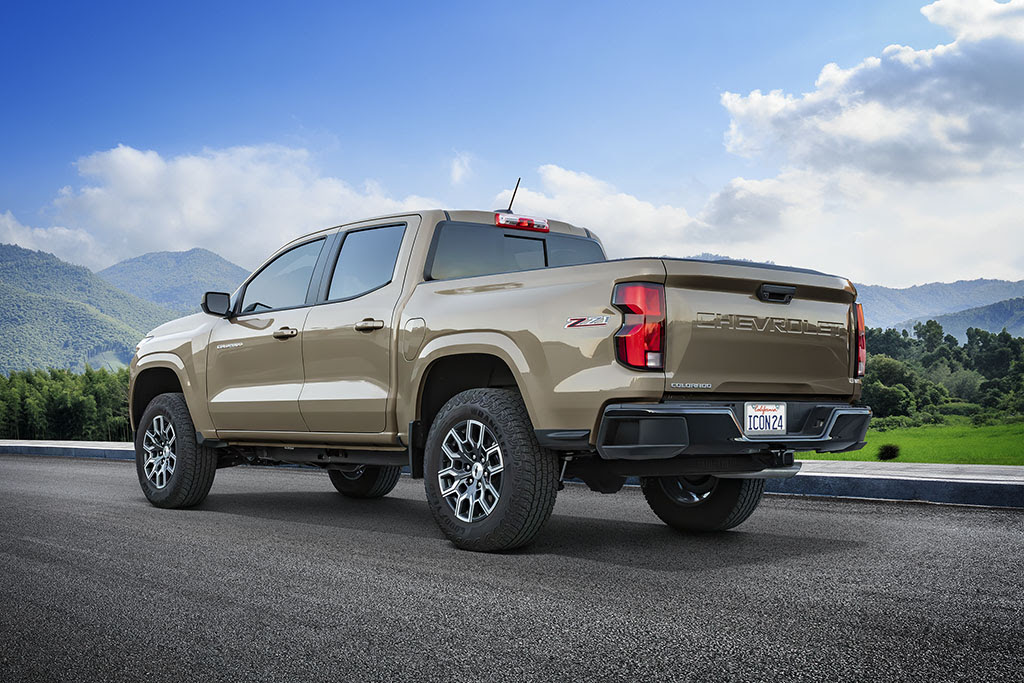

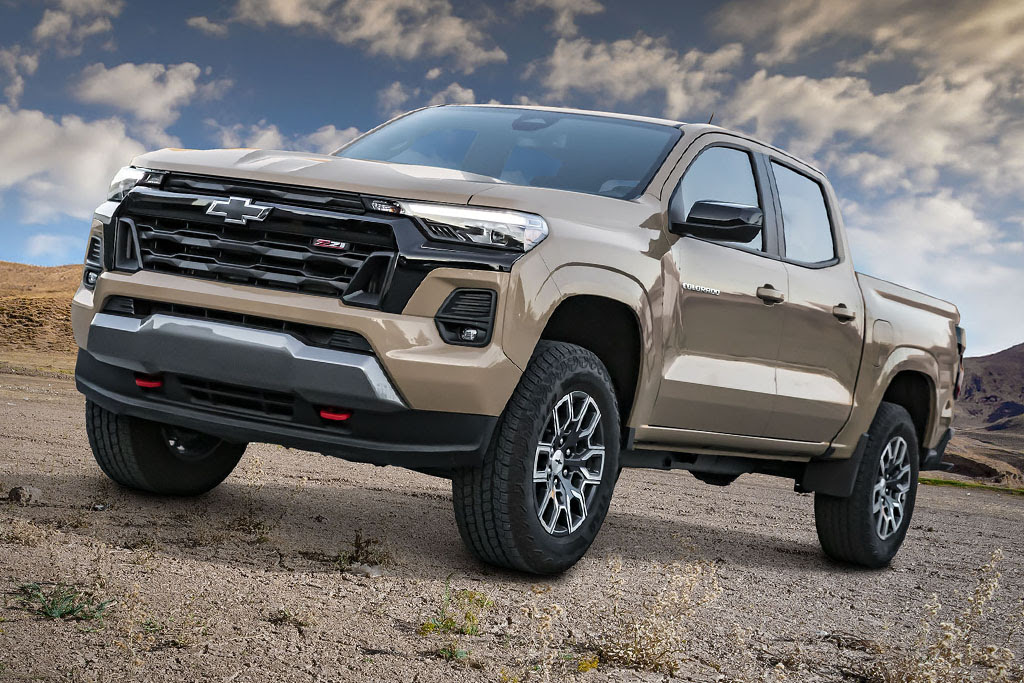

ICON is proud to introduce a range of performance suspension components and complete systems for the new 2023 Chevy Colorado (standard track width models*). Together, these components yield 1.75-2.5" of suspension lift and leveling, to easily fit up to 33" tires (or larger with some trimming). Performance is built in, with 10.25" of front wheel travel (20% better than stock) and improved ride and handling characteristics both on- and off-road. Individual components include 2.5 Vehicle Series front coilovers, billet or tubular upper control arms featuring the incredible Delta Joint Pro, and 6 Stages of our Complete Suspension Systems featuring an array of performance variants to choose from.

*Fits standard track width models only. Does not fit Chevy Colorado Trail Boss or ZR2 Models. Does not fit GMC Canyon (see ICON Components and Stages specifically engineered for "wide track width models" including GMC Canyon and Chevy Colorado Trail Boss & ZR2).

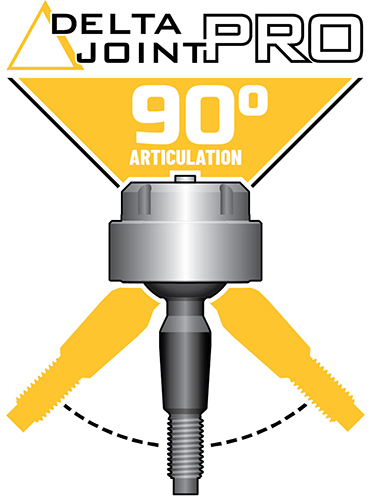

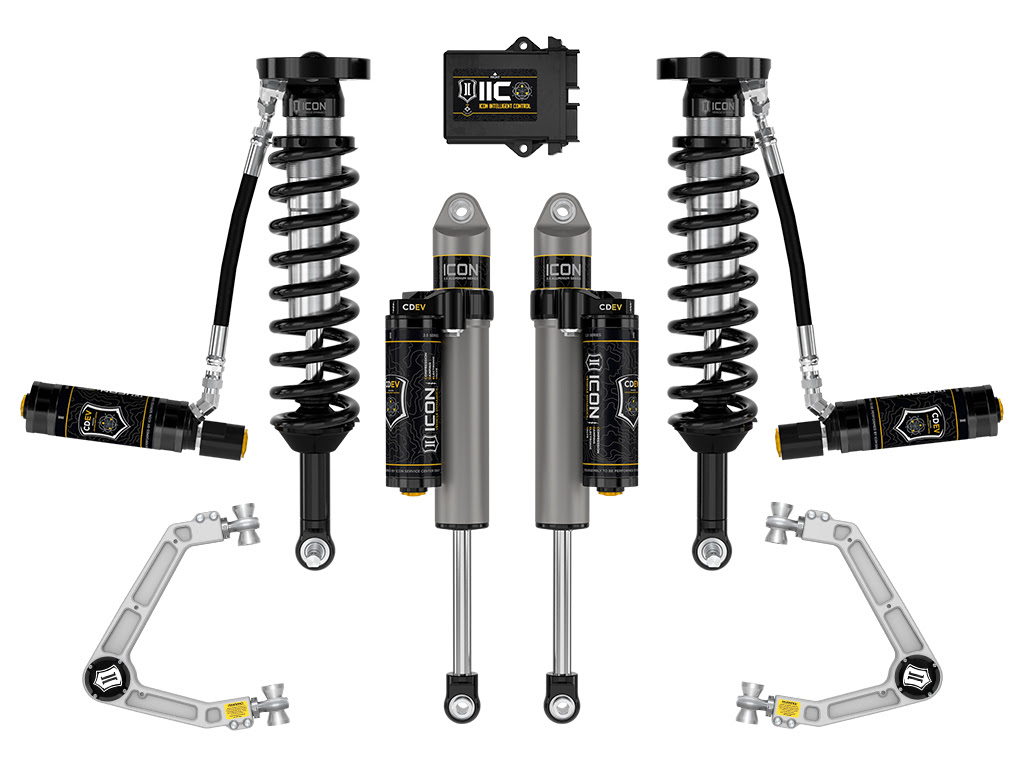

Featuring the Incredible Delta Joint PRO

ICON Upper Control Arms for Canyon/Colorado feature the high performance Delta Joint PRO for unmatched range of motion, strength and durability. They're also easily serviceable/rebuildable. Delta Joint PRO is featured in both the tubular and billet versions of our UCA, which are available on their own or as part of our Complete Suspension Systems in Stage 2 and up.

---



SUSPENSION COMPONENTS

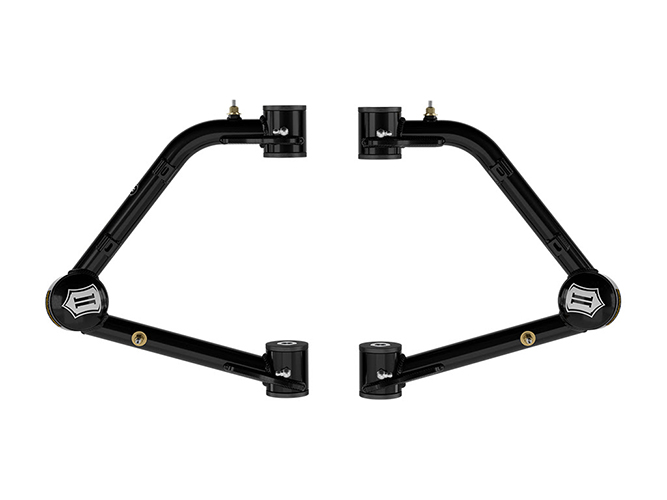

78661DJ
23 CHEVROLET COLORADO TUBULAR UCA DJ PRO KIT

78761DJ

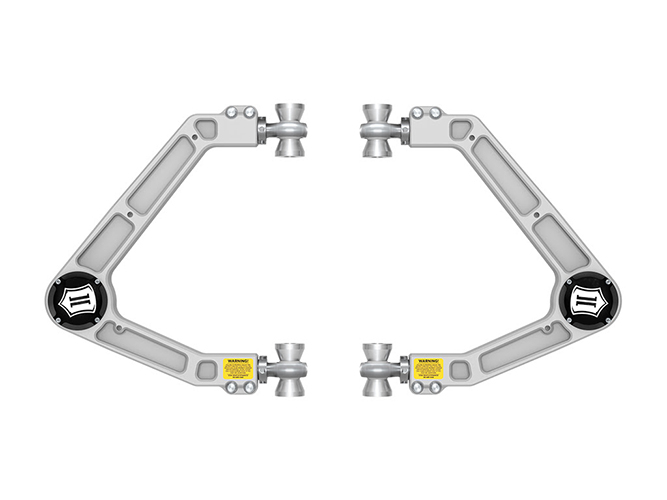

 23 CHEVROLET COLORADO BILLET UCA DJ PRO KIT

71616
23 CHEVROLET COLORADO 2.5 VS IR COILOVER KIT

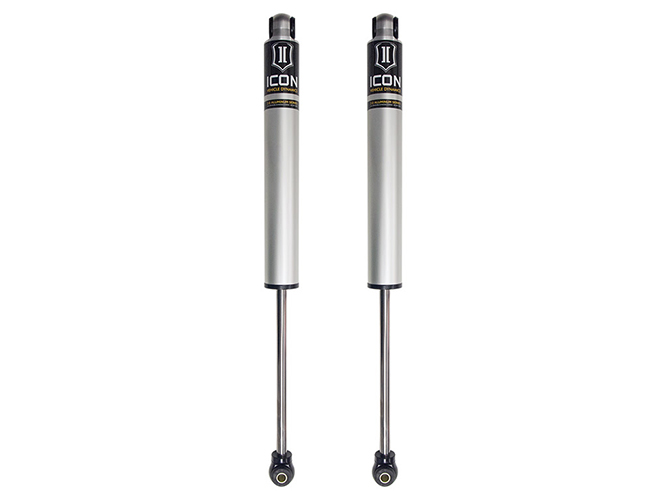

76550
15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS IR

71671

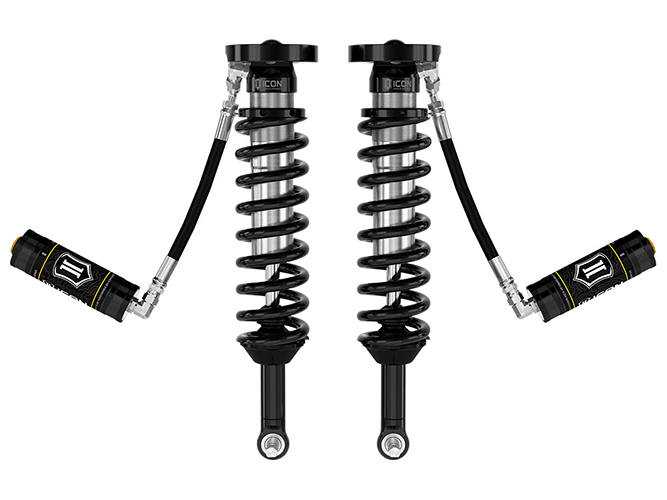

23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR COILOVER KIT

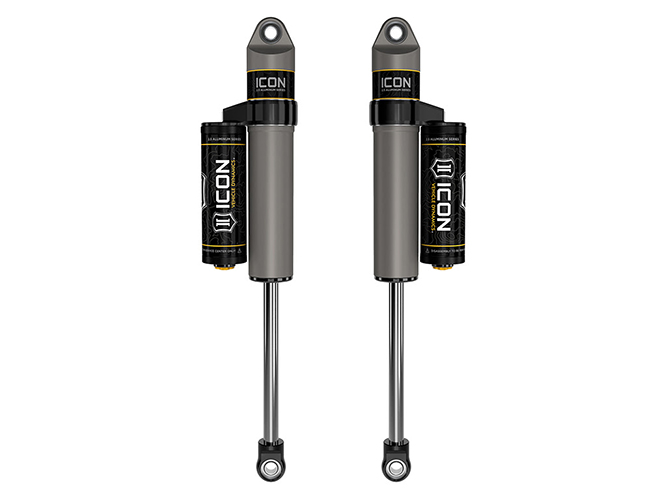

77751P
23 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB PAIR

71671C

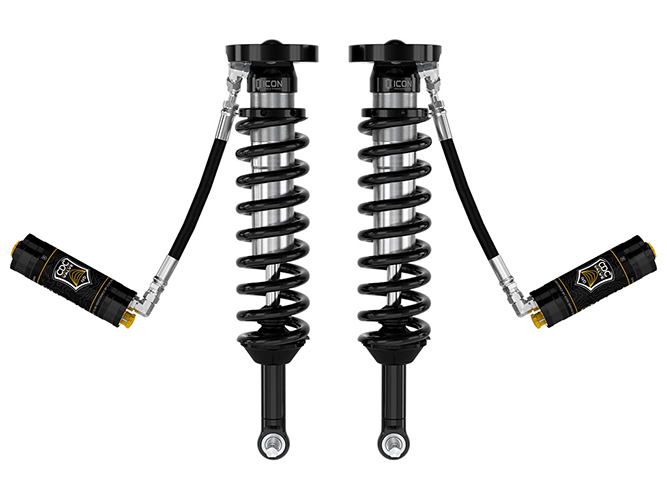

23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT

77751CP

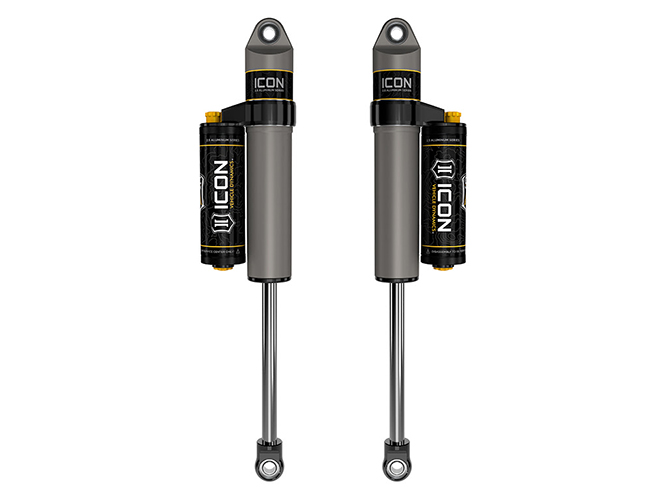

23 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB CDCV PAIR

71671E

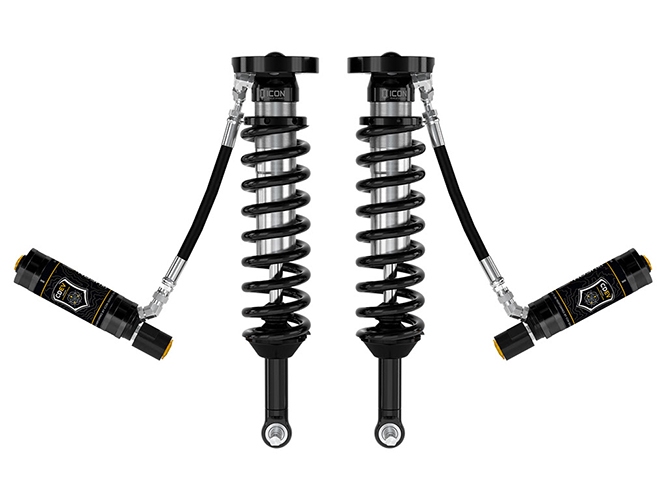

23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT

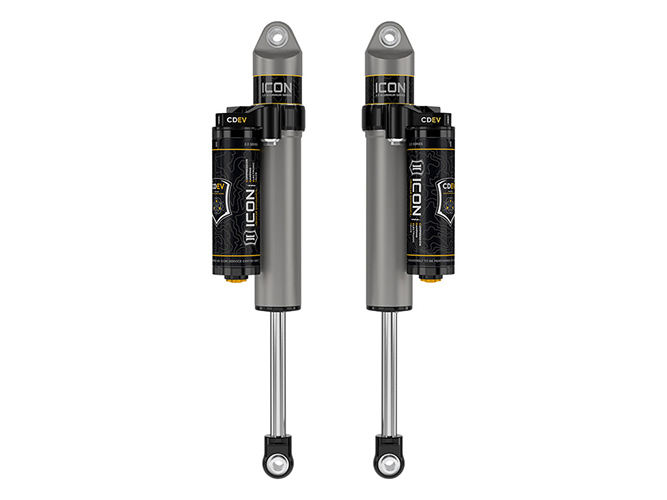

77751EP
23 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB CDEV PAIR

73000

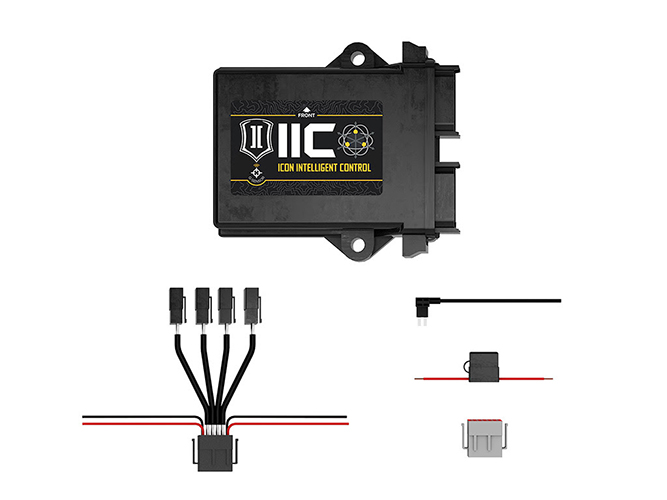

23 GM CANYON/COLORADO IIC INSTALL KIT

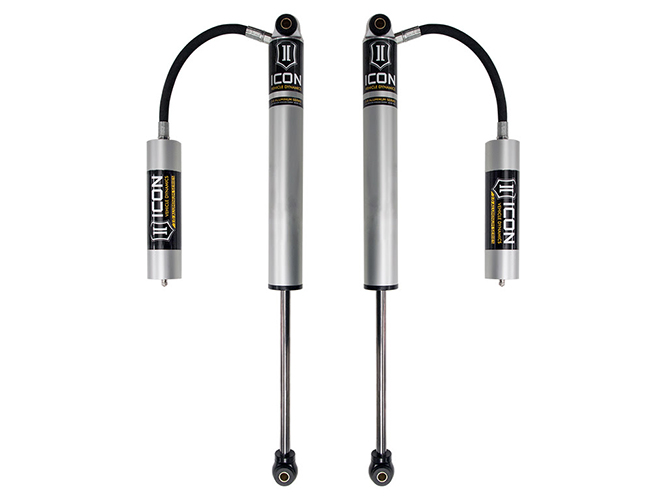

76550R
15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS RR

---



COMPLETE SUSPENSION SYSTEMS

For your ordering convenience we've pre-configured six Stages of ICON Performance Suspension Systems to meet just about any level of performance and budget expectations.  Stage 1 includes our 2.5 VS front coilovers with internal reservoir along with our 2.0 rear shocks for improved ride and performance, and fitment of up to 35" tires. At the other end of the spectrum our fully loaded Stage 6 features billet or tubular UCAS with the incredible Delta Joint Pro, along with ICON 2.5 VS Coilovers and Shocks featuring cutting-edge CDEV electronic performance technology

TECH NOTES
The following tech and fitment data applies to all of these Suspension System Stages:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 33" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Ships in multiple boxes
• TECH NOTE: ONLY compatible with NARROW STANCE VEHICLES
• ICON UCA required (Stages 2-6)

---

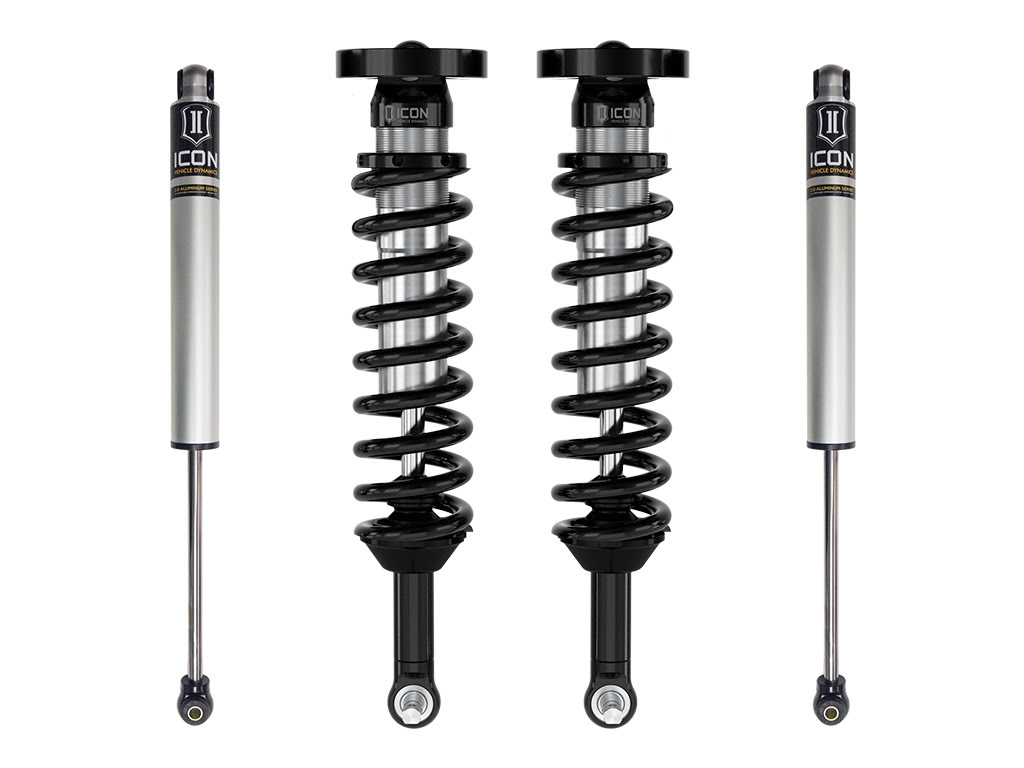

STAGE 1

K73091    23 CHEVROLET COLORADO 1.75-2.5" STAGE 1 SUSPENSION SYSTEM

SYSTEM INCLUDES

• 71616    23 CHEVROLET COLORADO 2.5 VS IR COILOVER KIT
• 76550    15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS IR (2)

KEY FEATURES:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application specific mounting hardware
• Adjustable Coilovers from 1.75-2.5” of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear IFP shock with 5/8" polished shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

---

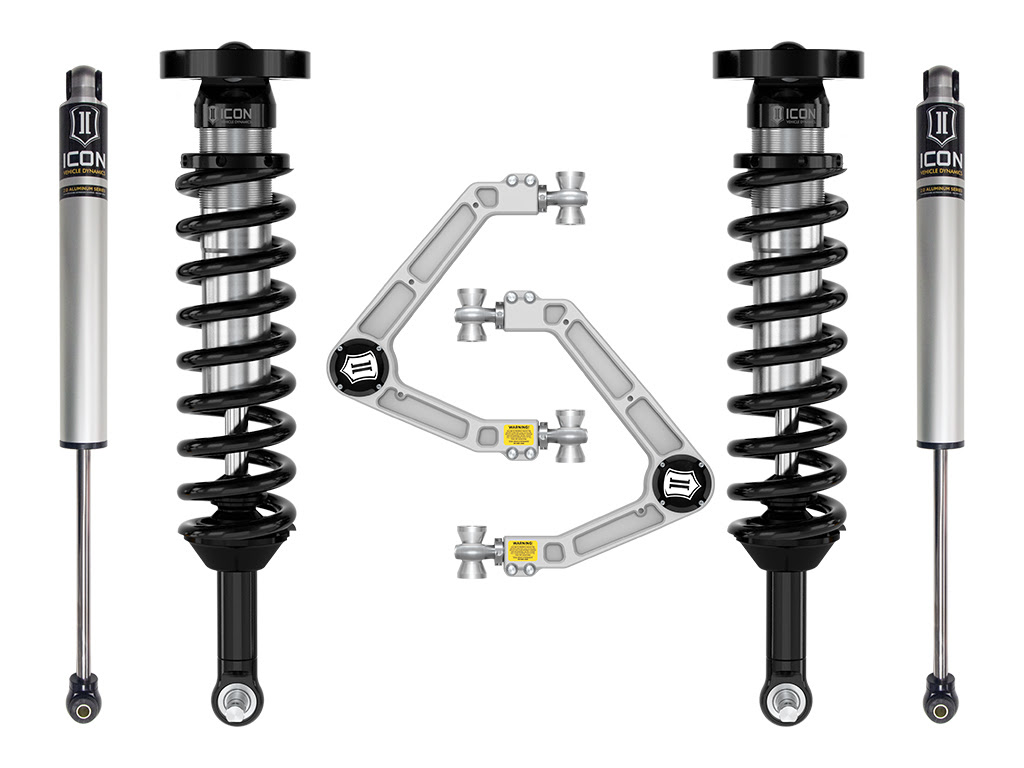

STAGE 2

K73092T   23 CHEVROLET COLORADO 1.75-2.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
K73092     23 CHEVROLET COLORADO 1.75-2.5" STAGE 2 SUSPENSION SYSTEM W BILLET UCA

SYSTEMS INCLUDE

• 71616    23 CHEVROLET COLORADO 2.5 VS IR COILOVER KIT
• 78661DJ    23 CHEVROLET COLORADO TUBULAR UCA DJ PRO KIT
   or 78761DJ    23 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
• 76550    15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS IR (2)

KEY FEATURES:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application specific mounting hardware
• Adjustable coilovers from 1.75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear IFP shock with 5/8" polished shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet aluminum UCA for added strength, durability and an additional degree of caster for better drivability

---

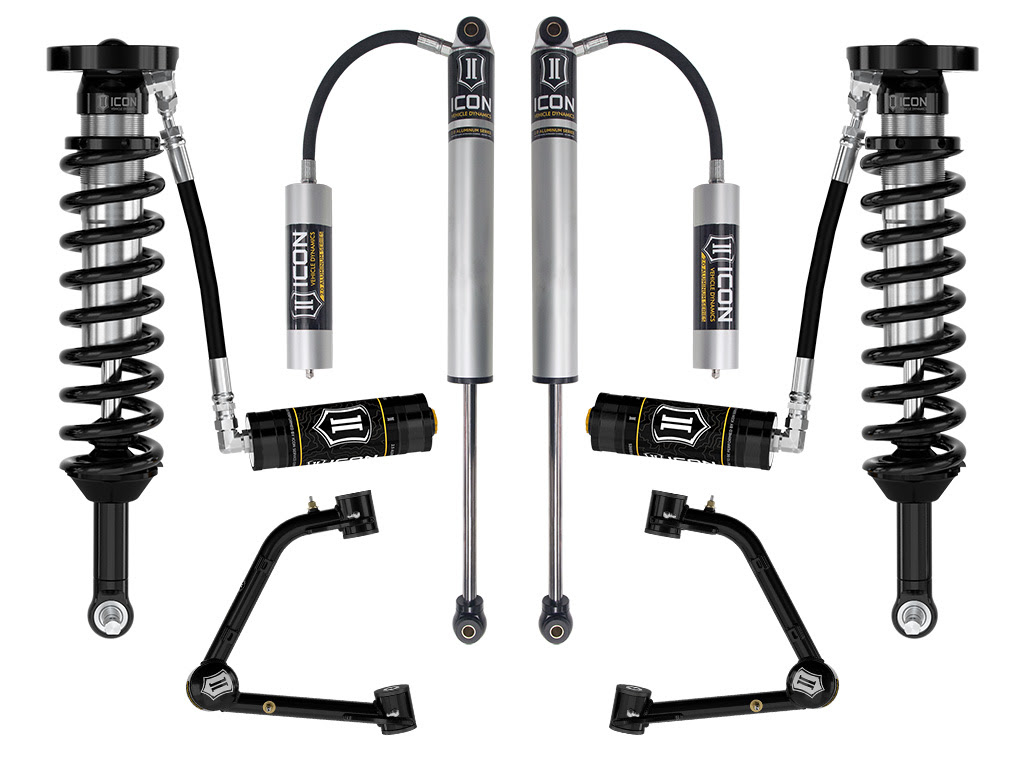

STAGE 3

K73093T   23 CHEVROLET COLORADO 1.75-2.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA
K73093      23 CHEVROLET COLORADO 1.75-2.5" STAGE 3 SUSPENSION SYSTEM W BILLET UCA

SYSTEMS INCLUDE

• 71671    23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR COILOVER KIT
• 78661DJ    23 CHEVROLET COLORADO TUBULAR UCA DJ PRO KIT
   or 78761DJ    23 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
• 76550R    15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS RR

KEY FEATURES:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application specific mounting hardware
• Adjustable coilovers from 1.75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear remote reservoir shock with 5/8" polished shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet aluminum UCA for added strength, durability and an additional degree of caster for better drivability

---

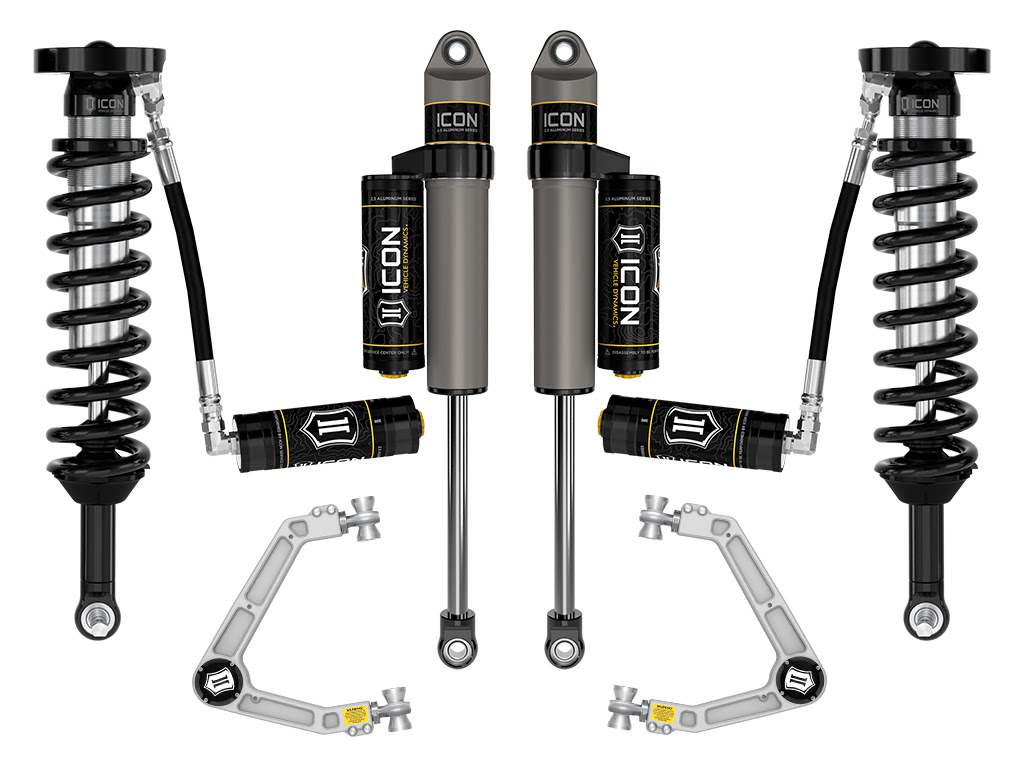

STAGE 4

K73094T    23 CHEVROLET COLORADO 1.75-2.5" STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA
K73094    23 CHEVROLET COLORADO 1.75-2.5" STAGE 4 SUSPENSION SYSTEM W BILLET UCA

SYSTEMS INCLUDE

• 71671    23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR COILOVER KIT
• 78661DJ    23 CHEVROLET COLORADO TUBULAR UCA DJ PRO KIT
   or 78761DJ    23 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
• 77751P    23 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB PAIR

KEY FEATURES:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application specific mounting hardware
• Adjustable coilovers from 1.75-2.5” of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• 2.5 remote reservoir front coilovers
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• no drilling or welding necessary for install
• Tubular or billet aluminum UCA for added strength, durability and an additional degree of caster for better drivability

---

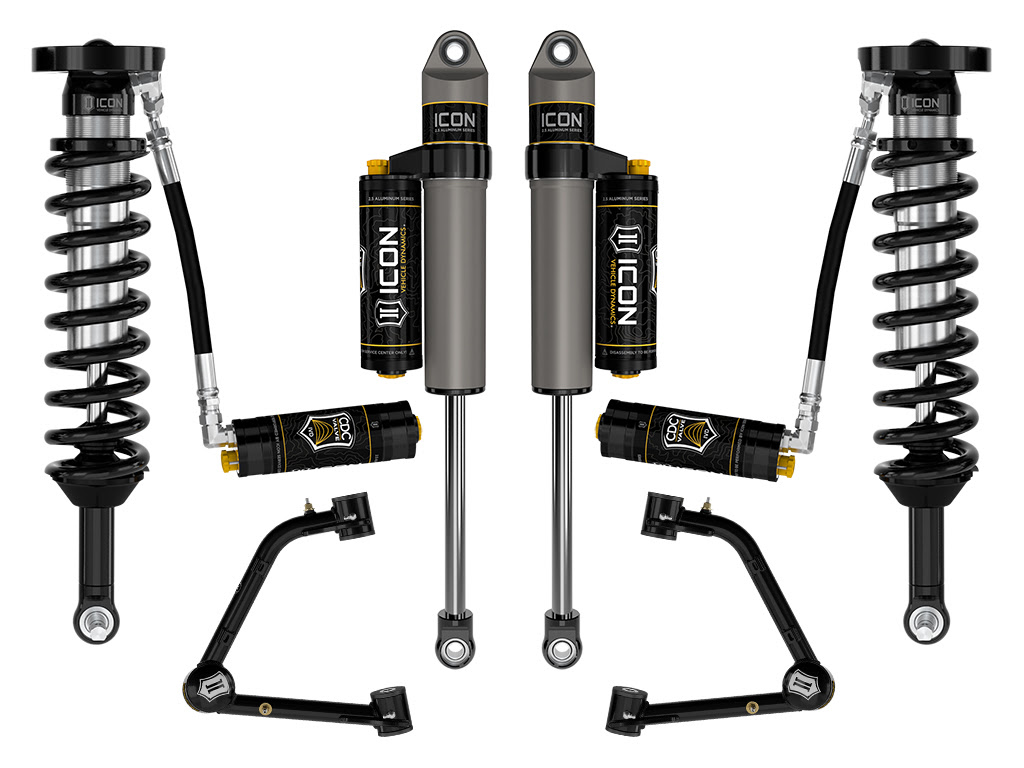

STAGE 5

K73095T    23 CHEVROLET COLORADO 1.75-2.5" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA
K73095    23 CHEVROLET COLORADO 1.75-2.5" STAGE 5 SUSPENSION SYSTEM W BILLET UCA

SYSTEMS INCLUDE

• 71671C    23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
• 78661DJ    23 CHEVROLET COLORADO TUBULAR UCA DJ PRO KIT
   or 78761DJ    23 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
• 77751CP    23 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB CDCV PAIR

KEY FEATURES:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application specific mounting hardware
• Adjustable coilovers from 1.75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• No drilling or welding necessary for install
• Tubular or billet aluminum UCA for added strength, durability and an additional degree of caster for better drivability
• 2.5 remote reservoir shocks with Icon CDC valve allowes for quick and easy end user compression adjustment.

---

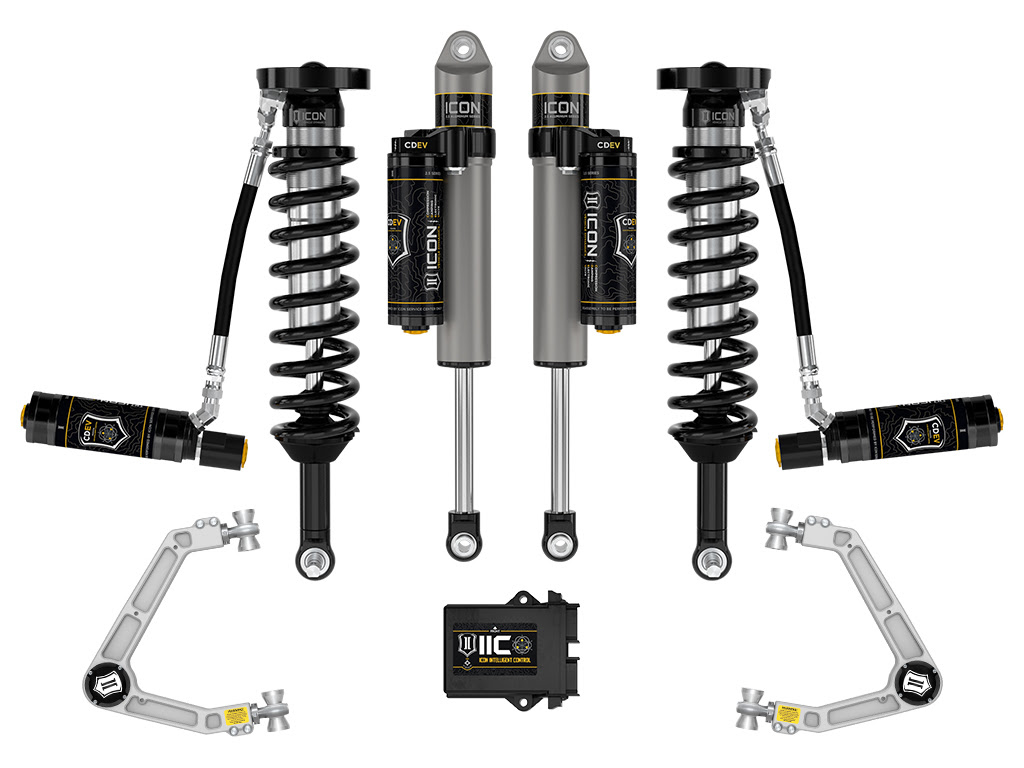

STAGE 6

K73096T    23 CHEVROLET COLORADO 1.75-2.5" STAGE 6 SUSPENSION SYSTEM W TUBULAR UCA
K73096    23 CHEVROLET COLORADO 1.75-2.5" STAGE 6 SUSPENSION SYSTEM W BILLET UCA

SYSTEMS INCLUDE

• 71671E    23 CHEVROLET COLORADO EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT
• 78661DJ    23 CHEVROLET COLORADO TUBULAR UCA DJ PRO KIT
   or 78761DJ    23 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
• 77751EP    23 GM CANYON/COLORADO 0-1" REAR 2.5 VS PB CDEV PAIR
• 73000    23 GM CANYON/COLORADO IIC INSTALL KIT

KEY FEATURES:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application specific mounting hardware
• Adjustable coilovers from 1.75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• No drilling or welding necessary for install
• Tubular or billet aluminum UCA for added strength, durability and an additional degree of caster for better
  drivability
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
