ICON 2021-2024 Ford F-150 4WD, 2.75-3.5" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDXS, Pair

In Stock
sku : 91825X
price : $2495.95

Weight: 63.00 Pounds
quantity :
add to cart

overview

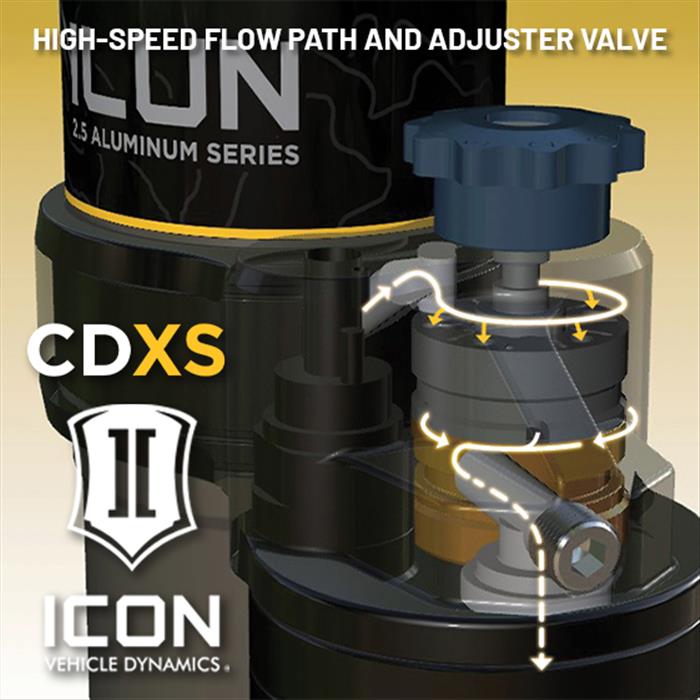

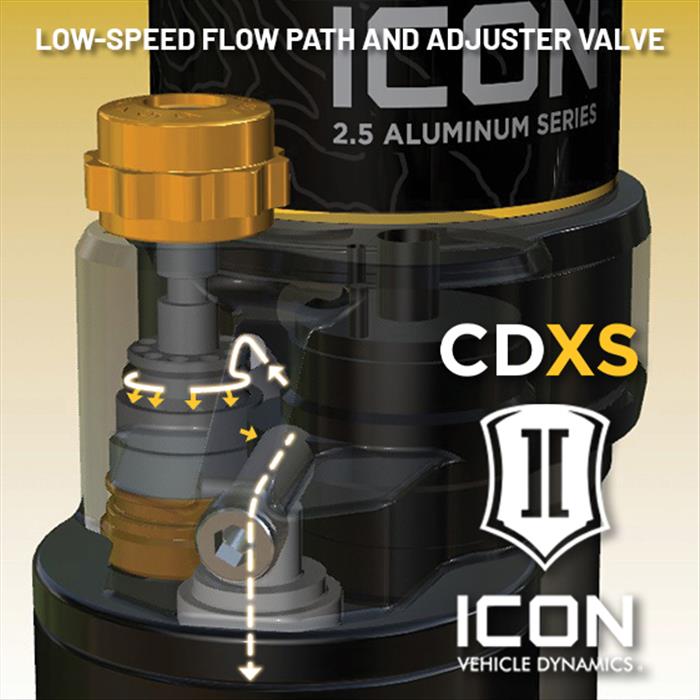

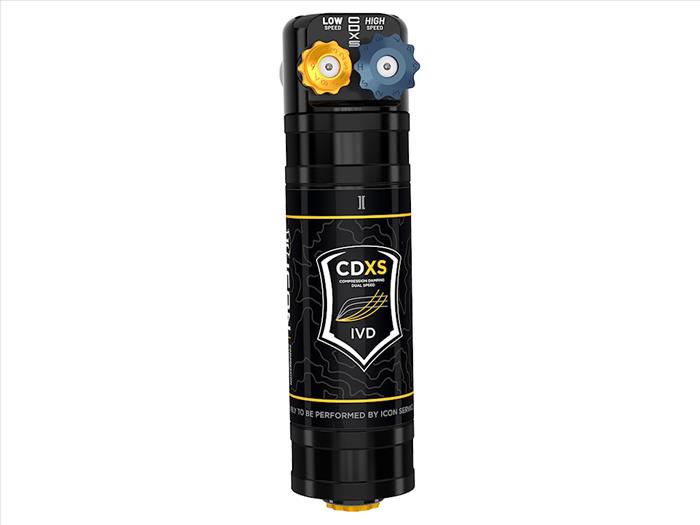

ICON Vehicle Dynamics V.S. Series 2.5? coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON?s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5? of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5? shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

features & Benefits

  • Increased wheel travel and ride quality over stock
  • Adjustable for 2.75-3.5" of front lift over stock
  • Vehicle specific tuned for superior shock damping and control
  • External reservoirs to attain cooler operating temperatures during extended off-road use

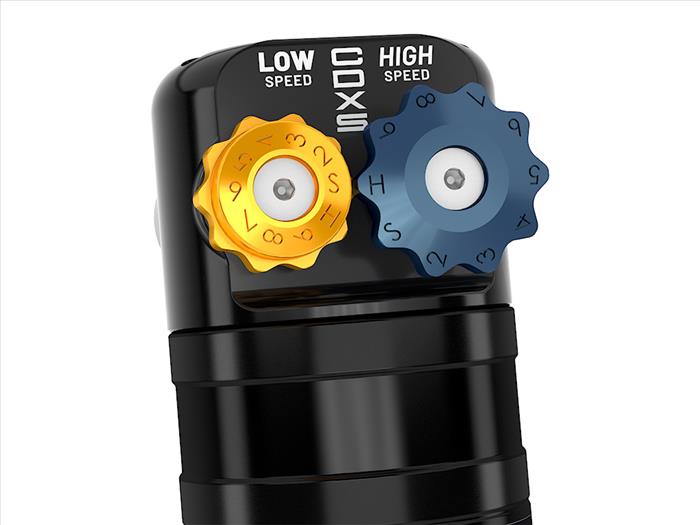

  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
  • High strength alloy CNC machined lower bar pins
  • FK rod end bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no cutting or welding necessary for installation

download installation guide

Tech Info:

  • Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5? Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
  • APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
  • TECH NOTE: Only compatible with 4-wheel drive (4WD) models
  • TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25" over stock
  • TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3" over stock
  • TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
  • TECH NOTE: Not compatible with models equipped with BlueCruise
